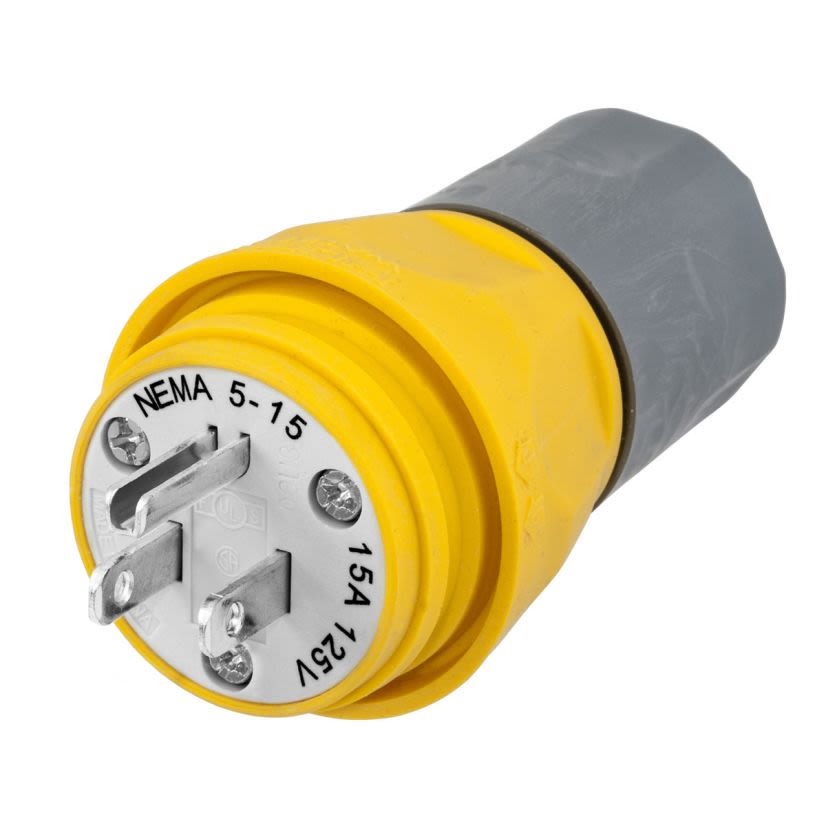

Hubbell Wiring Device - Kellems HBL14W47A
Hubbell Wiring Device-Kellems HBL14W47A 1-Phase Standard Watertight Cord Mount Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
Hubbell Wiring Device - Kellems HBL14W47A
Hubbell Wiring Device-Kellems HBL14W47A 1-Phase Standard Watertight Cord Mount Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, YellowIn Stock: 7more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL14W47A
Werner Part #4056741
UPC783585131191
In Stock: 7more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL14W47A
Werner Part #4056741
UPC783585131191
Product Description
Hubbell Wiring Device-Kellems, HBL14W47A, Straight Blade Plug, 1-Phase Standard Watertight Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12 Enclosure, 3/8 to 5/8 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Elastomer/Composite, Yellow, 1.85 in Dia x 3.16 in L Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorYellow
Country of OriginCN
Dimensions1.85 in Dia x 3.16 in L
Enclosure TypeNEMA 4/4X/6/6P/12
GradeCommercial/Industrial
Horsepower1/2 hp
ManufacturerHubbell
MaterialElastomer/Composite
NEMA Rating5-15P
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Standard Watertight Cord Mount
Type / StyleStandard Watertight
Voltage Rating125 V AC
Documents
Warranty
Limited
Features
- Smooth body design minimizes collection points simplifying thewash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Specifications
Standards/Approvals: UL 498|ANSI Specified|CSA C22.2 No. 42 Certified|NEMA WD1/WD6
