Hubbell Wiring Device - Kellems HBLDS33ACNK

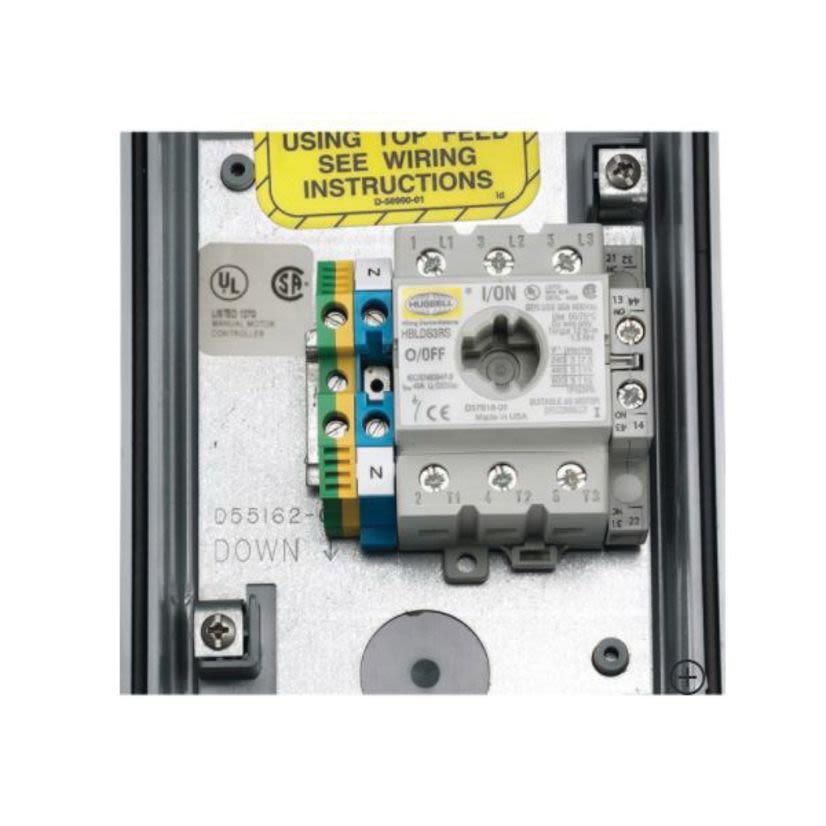

Hubbell Wiring Device-Kellems Circuit-Lock HBLDS33ACNK Labelless Non-Metallic Standard Unfused Enclosed Disconnect Switch With (3) Auxiliary Contacts, 600 VAC, 30 A, 10 hp, 2-Position Contact, 3 Poles
Hubbell Wiring Device - Kellems HBLDS33ACNK
Hubbell Wiring Device-Kellems Circuit-Lock HBLDS33ACNK Labelless Non-Metallic Standard Unfused Enclosed Disconnect Switch With (3) Auxiliary Contacts, 600 VAC, 30 A, 10 hp, 2-Position Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBLDS33ACNK
Werner Part #3770873
UPC783585392868
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBLDS33ACNK
Werner Part #3770873
UPC783585392868
Product Description
Hubbell Wiring Device-Kellems Circuit-Lock® Enclosed Disconnect Switch, Labelless Non-Metallic Standard Unfused, 600 VAC, 30 A, 10 hp, 3 Phase, 60 Hz, 3 Pole, 65 kA Short Circuit Current Rating, 2-Position, Lever Operated Actuator, NEMA 4X/12/IP69K, Feet Mount, Screw Terminal, -40 to 67 deg C, 8.5 in L x 6 in W x 4.12 in H, Polybutylene Terephthalate, Gray
Attributes
Documents
Features
Attributes
Actuator TypePivot/Toggle Handle
Connection TypeLoad Lug
Country of OriginUnited States
Dimensions6-9/16 in H x 4-1/8 in W x 2-5/8 in D
Enclosure TypeNEMA 4X/12/IP69K
FrameQ-Line
Frequency Rating50/60 Hz
Horsepower10 hp
Interrupt Rating10 kA
ManufacturerHubbell
MaterialPlastic
Mounting TypeBolted-On
Number of Poles3
Phase3
Short Circuit Current Rating65 kA
Size of Wire(2) 1 AWG to 300 kcmil
Temperature Rating10 to 50 deg C
Trip TypeLI/Non-Interchangeable Thermal Magnetic
TypeType TQD Compact
Type / StyleLabelless Non-Metallic Standard Unfused
Voltage600 VAC
Documents
Features
Permanent labelless markingMolded in corrosion and impact resistant material that is UV stabilizedHighly visible red handle which meets OSHA lockout/tagout capabilitiesCover cannot be removed with switch in the "ON" positionAccepts up to two auxiliary contactsInternal frame automatically bonds all groundsMolded in conduit opening and field installed hubReversible interior accommodates top or bottom conduit openingWithout knockouts
