HPS SP350MQMJ

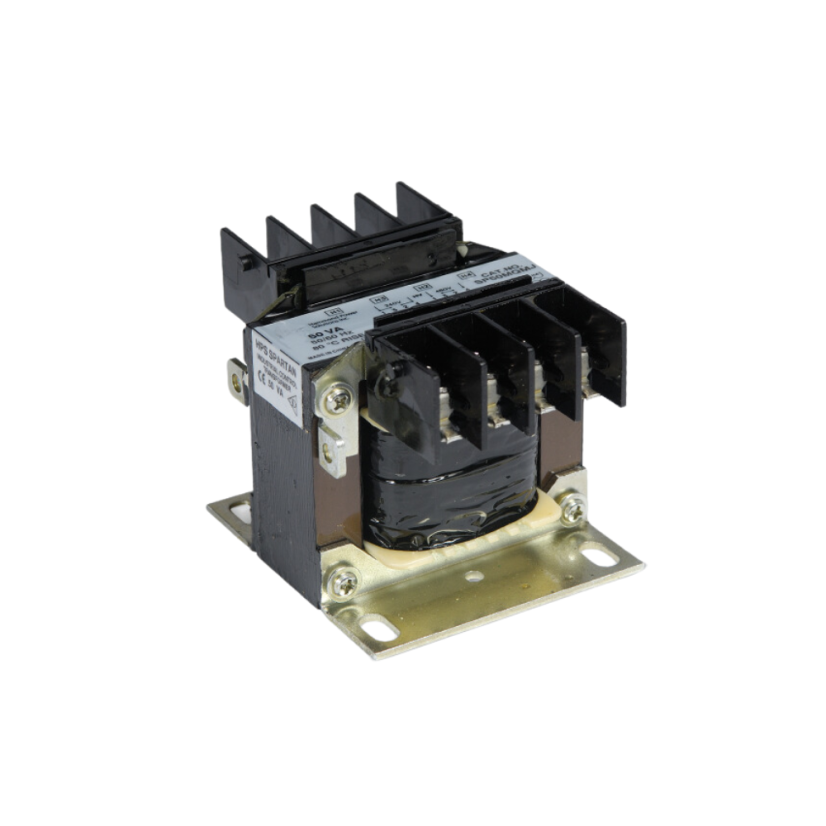

HPS SP350MQMJ Spartan Dry Type Control Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 350 VA Power Rating, 50 Hz, 1 Phase
HPS SP350MQMJ
HPS SP350MQMJ Spartan Dry Type Control Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 350 VA Power Rating, 50 Hz, 1 PhaseIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
HPS, SP350MQMJ, Control Transformer, Dry Type, Series: Spartan, 240/480 V AC Primary, 120/240 VAC Secondary, 350 VA Power, 50 Hz Frequency, 1 ph, 2.92/1.46 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, Open/Core and Coil Enclosure, 40 deg C, 3.78 in L x 4.69 in W x 3.4 in H Dimensions
Attributes
Documents
Features
Warranty
Applications
Attributes
Connection TypeScrew
Country of OriginCN
Dimensions3.78 in L x 4.69 in W x 3.4 in H
Enclosure TypeOpen/Core and Coil
Frequency Rating50 Hz
Height3.4 in
Insulation Type130 deg C
Length3.78 in
ManufacturerHammond Power Solutions
Maximum Amperage Rating2.92/1.46 A
Mounting TypePanel
Package TypeEACH
Phase1
Power Rating350 VA
Primary Voltage240/480 V AC
Secondary Voltage120/240 V AC
SeriesSpartan
Temperature Rating40 deg C
TypeDry Type
Type / StyleTranformer > Dry Type > Control > Open Core and coil
Width4.69 in
Documents
Features
- All units supplied with primary and secondary voltage link/jumpers
- All terminal blocks utilize a combination slot/Phillips #6 screw with a SEMS washer
- Coil face terminations utilize a 1/4 - 20 UNC x 0.50 in slot/Phillips screw and a spring lock washer
- Superior insulating materials
- Premium packaging which features premium fluted cartons and custom molded foam inserts
- Copper wound coils with high dielectric strength insulation
- All HPS Spartan units are supplied with trilingual installation and wiring instruction sheets
- All HPS Spartan transformers are vacuum impregnated with polyester resin and oven cured
- Bolted core construction
- 240/480, 230/460, 220/440 V primary volt
- 120/240, 115/230, 110/220 V secondary volt
- Primary and secondary voltage links/jumpers supplied standard with all transformers
- 40 deg C maximum
Warranty
Limited
Applications
General Purpose, HVAC, Signals and Alarm Systems, Industrial, Motor Control Circuits, Lighting and Circuit Isolation
