HPS PH750MQMJ

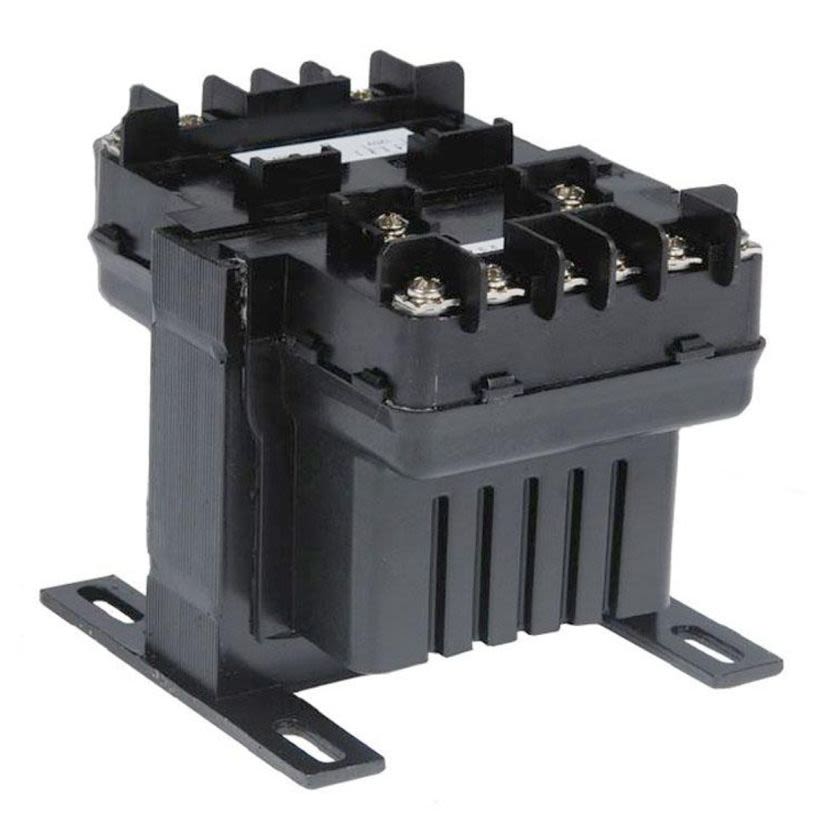

HPS PH750MQMJ Imperator Dry Type Molded Control Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 750 VA Power Rating, 50/60 Hz, 1 Phase
HPS PH750MQMJ
HPS PH750MQMJ Imperator Dry Type Molded Control Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 750 VA Power Rating, 50/60 Hz, 1 PhaseIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
HPS, PH750MQMJ, Control Transformer, Dry Type Molded, Series: Imperator, 240/480 V AC Primary, 120/240 VAC Secondary, 750 VA Power, 50/60 Hz Frequency, 1 ph, 6.25/3.13 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, Open/Core and Coil Enclosure, 40 deg C, 5.13 in L x 6.69 in W x 4.31 in H Dimensions
Attributes
Documents
Features
Warranty
Applications
Attributes
Connection TypeScrew
Country of OriginCN
Dimensions5.13 in L x 6.69 in W x 4.31 in H
Enclosure TypeOpen/Core and Coil
Frequency Rating50/60 Hz
Height4.31 in
Insulation Type130 deg C
Length5.13 in
ManufacturerHammond Power Solutions
Maximum Amperage Rating6.25/3.13 A
Mounting TypePanel
Package TypeEACH
Phase1
Power Rating750 VA
Primary Voltage240/480 V AC
Secondary Voltage120/240 V AC
SeriesImperator
Temperature Rating40 deg C
TypeDry Type Molded
Type / StyleTranformer > Dry Type > Control > Molded
Width6.69 in
Documents
Features
- Constructed with high quality silicon steel laminations that provide optimum performance and reliability
- Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
- Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
- Combination slot/Philips #6 screw, complete with SEMS washer termination
- Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
- SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
- Innovative terminal block design provides for easy hook-up and installation of fuse clip
- Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
- 240 x 480, 230 x 460, 220 x 440 V primary volt
- 120 x 240, 115 x 230, 110 x 220 V secondary volt
- Encapsulated copper wound coils encased in a custom injection molded cover
- Secondary fuse clips, fuse clip mounting screws and primary and secondary voltage links/jumpers supplied with transformers
- 40 deg C maximum
- Potted control transformer for high inrush applications powering coils
Warranty
Lifetime
Applications
Industrial, Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control and Timer Applications
