Heyco M4518

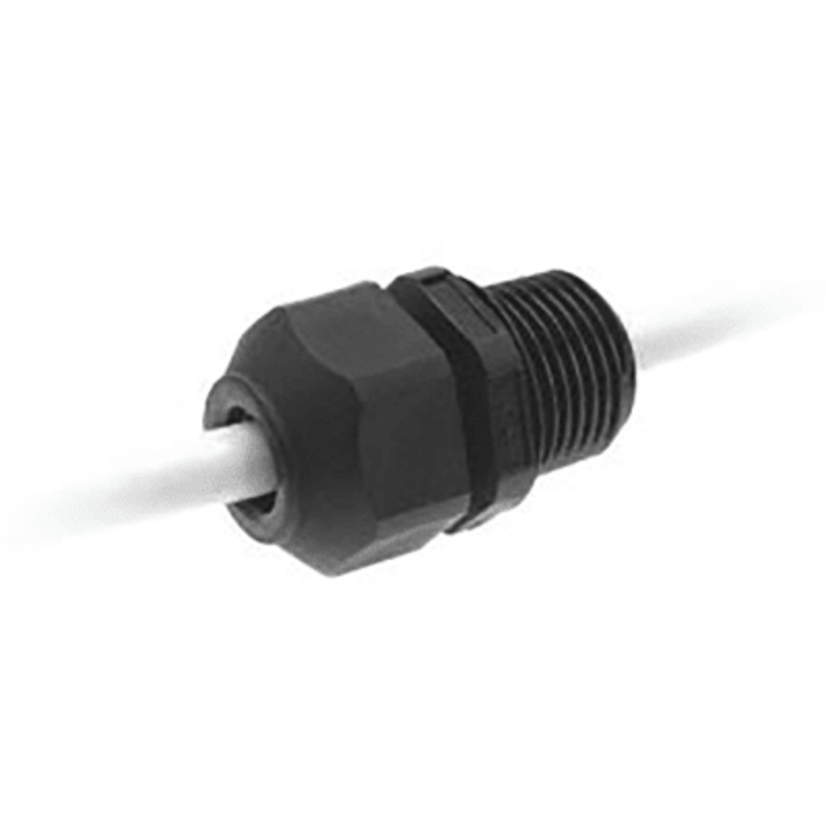

Heyco M4518 Straight-Thru Liquid Tight Cord Grip, 0.95 to 0.29 in Cable Openings, Nylon 6/6
Heyco M4518
Heyco M4518 Straight-Thru Liquid Tight Cord Grip, 0.95 to 0.29 in Cable Openings, Nylon 6/6In Stock: 210more info
|
In Stock: 210more info
|
Product Description
Heyco, M4518, Liquid Tight Cord Grip, Straight-Thru, Cable Openings: 0.95 to 0.29 in, NPT Connection, Nylon 6/6, Black, -40 to 239 deg F, 0.875 in Dia x 1.70 in L Dimensions
Attributes
Documents
Features
Attributes
Cable Openings0.95 to 0.29 in
ColorBlack
Connection TypeNPT
Dimensions0.875 in Dia x 1.70 in L
ManufacturerHeyco
MaterialNylon 6/6
Temperature Rating-40 to 239 deg F
TypeStraight-Thru
Documents
Features
- Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time
- Widest range of approved cable diameters. Cable ranges listed are for the maximum IP68 sealing range. Contact Heyco for UL approved 514B cable ranges
- IP 68 rated
- Approved for NEMA 4, 4X, 6 and 6P applications
- Ratchet design of sealing nut assembly provides superior anti-vibration protection and ensures a firm grip on the cable
- Acme threads on body prevent skipping and speed installation
- All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
- Multiple sizes for flexible cord diameters ranging from .065" (1,7 mm) to 1.560" (39,6 mm)
- We recommend using the fitting with the smallest maximum diameter that will fit your application
- Locknuts not included. For nylon locknut specifications or to order locknuts separately
- Consult Heyco for cordgrips molded in other colors
