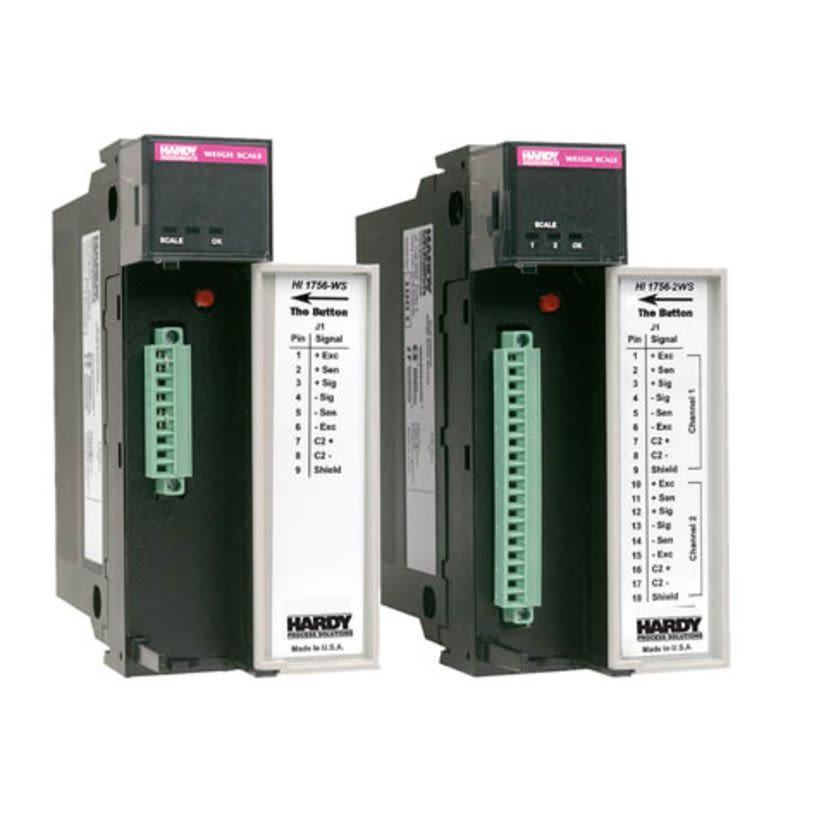

Hardy HI 1756-WS
HARDY HI 1756-WS Single Scale PLC Weighing Module, 5/24 V DC, -0.3 to 15.3 mV
Hardy HI 1756-WS
HARDY HI 1756-WS Single Scale PLC Weighing Module, 5/24 V DC, -0.3 to 15.3 mVNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
HARDY PLC Weighing Module, Single Scale, 5/24 V DC, -0.3 to 15.3 mV Signal Range, 32 to 140 deg F
Attributes
Documents
Applications
Features
Specifications
Attributes
Input TypeSignal: -0.3mV through +15.3 mVdc, Sense: +5Vdc & C2Ā® Electronic Calibration
ManufacturerHardy Process Solutions
Operating Temperature0 to 60Ā°C (32 to 140Ā°F)
Output TypeExcitation 5Vdc to 8.75Vdc
Temperature Rating32 to 140 deg F
TypeSingle Scale
Voltage Rating5/24 V DC
Documents
Applications
Batching/Blending, Filling/Dispensing, Level-by-Weight and Check Weighing
Features
- < 1 A at 5 VDC/5 W, < 0.0125 A at 24 VDC/0.3 W with (4) 350 Ohm LC
- C2 electronic calibration input
- Excitation 5 to 8.75 vdc output
- 100 dB at/below 60 Hz CMR
- 1:8388608 internal resolution
- 50 Updates/second conversion rate
- 0.25 Hz and above vibration frequency rejection in 5 selectable steps
- -40 to 185 deg F storage temperature
- 5 to 95% non-condensing humidity
- Net, Gross and Rate-of-Change weight modes
- Electronic (C2) and traditional (test weights) calibration
- Averages 1 to 255 user selectable in single increments
- OK module status, tri-color LED/"Scale 1" functional data, tri-color LED/"Scale 2" functional data, tri-color LED indicators
Specifications
- Power: Provided from the backplane of the rack: +5Vdc, +24Vdc
- Common Mode Rejection: 100dB at or below 60 Hz (minimum)
- Resolution: Internal, 1:8,388,608
- Vibration Frequency Rejection: 0.25 Hz and above in 5 selectable steps
- Relative Humidity: 5 to 95% (non-condensing)
- Averages: 1-255 user selectable in single increments
