GenSPEED 6500 Premium 7133930

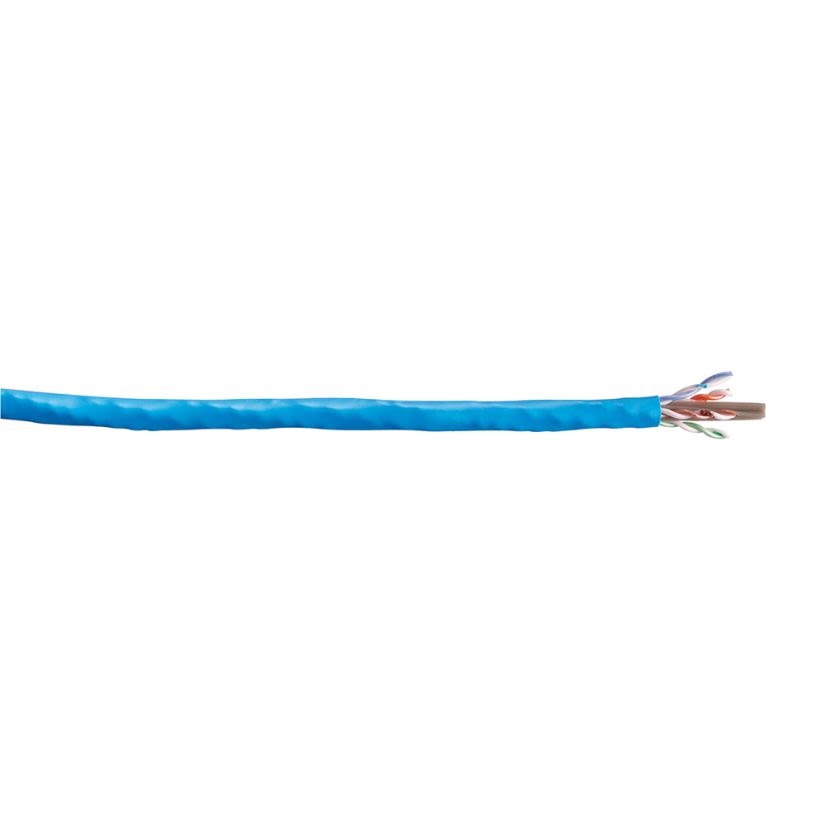

GenSPEED 6500 Premium 7133930 Type CMR Cat 6 Non-Plenum Cable, Spool Packaging, 23 AWG Annealed Bare Solid Copper Conductor, 1000 ft L
GenSPEED 6500 Premium 7133930
GenSPEED 6500 Premium 7133930 Type CMR Cat 6 Non-Plenum Cable, Spool Packaging, 23 AWG Annealed Bare Solid Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
GenSPEED 6500 Premium Cable, Type CMR Cat 6 Non-Plenum, Spool Packaging, Annealed Bare Solid Copper Conductor, 23 AWG Conductor, 0.26 in OD, 1000 ft Length, Polyolefin Insulation, PVC Jacket, Blue Jacket, -20 to 75 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size23 AWG
Conductor TypeAnnealed Bare Solid Copper
Country of OriginUS
Insulation MaterialPolyolefin
Jacket ColorBlue
Jacket MaterialPVC
ManufacturerPrysmian
Outside Diameter0.26 in
Package TypeSpool-Pac
SeriesSpool-PacĀ®
Temperature Rating-20 to 75 deg C
TypeType CMR Cat 6 Non-Plenum
Documents
Applications
IEEE 802.3: 1000 BASE-T (Gigabit Ethernet), 100 BASE-TX, 10 BASE-T, ANSI/TIA 854: 1000 BASE-TX, 155 Mp/s 1.2Gb/s ATM, ANSI X3.263: 100 Mb/s, IEEE 802.3af for DTE Power (PoE), IEEE 802.3at for PoE Plus, Digital Video, Broadband and Baseband Analog Video
Features
- Designed and engineered with precision balance to offer ultimate headroom
- High-end optimized performance to support the most bandwidth-intense applications
- New and improved separator construction allowing for more pair separation
- Performance guaranteed to 350 MHz
- TRU-Mark print legend contains footage markings from 1000 ft to 0 ft
- Third-party verified for guaranteed performance
- Low smoke flame retardant PVC jacket
Specifications
Standards/Approvals: ANSI/TIA 568-C.2, UL 444, NEC/CEC Type CMR (UL 1666) for Non-Plenum, RoHS Compliant Directive 2011/65/EU, ANSI/TIA 862 (Building Automation) ,ICEA S-116-732, ICEA S-102-700,ISO/IEC 11801 Ed. 2.0 (Class E)
