GenSPEED 6 7133863

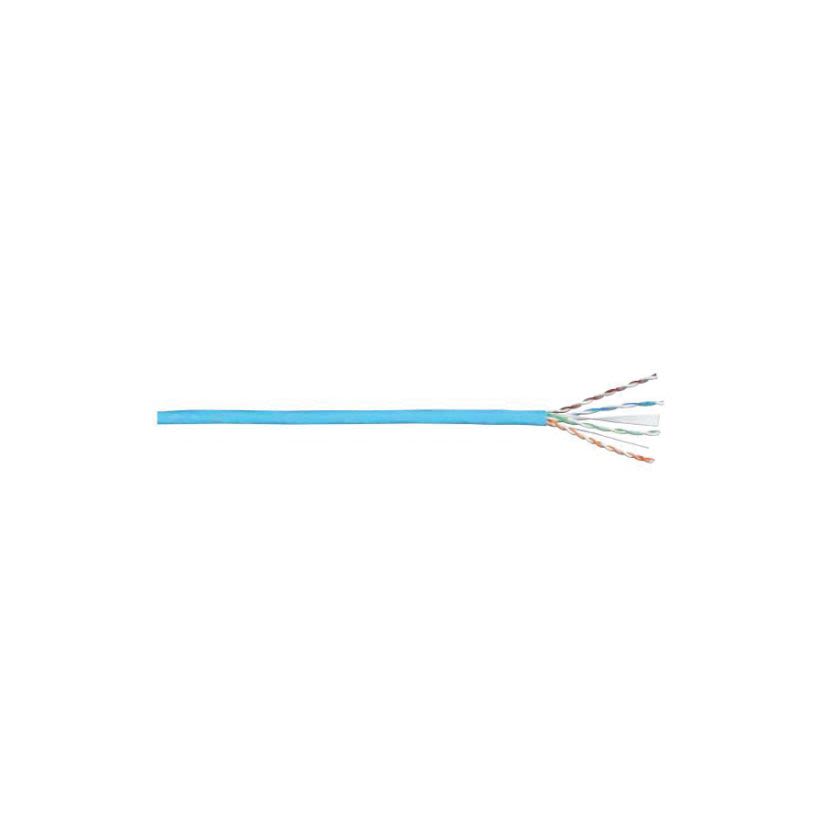

GenSPEED 6 7133863 Type CMR Cat 6 Non-Plenum Cable, Spool Packaging, (4 Pairs) 23 AWG Annealed Solid Copper Conductor, 1000 ft L
GenSPEED 6 7133863
GenSPEED 6 7133863 Type CMR Cat 6 Non-Plenum Cable, Spool Packaging, (4 Pairs) 23 AWG Annealed Solid Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
BrandGenSPEED 6
MFG #7133863
Werner Part #4110465
UPC079407845637
Non-stock product. Available to order - lead time may vary.
BrandGenSPEED 6
MFG #7133863
Werner Part #4110465
UPC079407845637
Product Description
GenSPEED 6 Cable, Type CMR Cat 6 Non-Plenum, Spool Packaging, 4 Pairs Conductors, Annealed Solid Copper Conductor, 23 AWG Conductor, 0.22 in OD, 1000 ft Length, 9.38 Ohm Resistance, Polyolefin Insulation, PVC Jacket, Gray Jacket, -20 to 75 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Conductor size23 AWG
Conductor TypeAnnealed Solid Copper
Country of OriginUS
Insulation MaterialPolyolefin
Jacket ColorGray
Jacket MaterialPVC
ManufacturerPrysmian
Number of Conductors4 Pairs
Outside Diameter0.22 in
Resistance9.38 Ohm
Temperature Rating-20 to 75 deg C
TypeType CMR Cat 6 Non-Plenum
Applications
IEEE 802.3 1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE+, ANSI/TIA 854 1000 BASE-TX, CDDI, Token Ring, ATM, Digital Video, Broadband and Baseband Analog Video
Warranty
1 Year Limited
Features
- Unique separator design engineered for consistent electrical performance
- Performance guaranteed to 350 MHz
- Improved cable temperature rating (90 deg C plenum, 75 deg C riser) for greater protection against increased operating temperatures
- TRU-Mark print legend contains footage marking from 1000 to 0 ft
- Third-party verified for guaranteed performance
- Ripcord applied longitudinally under jacket
- 4% maximum and less than 1% nominal individual pair DC resistance unbalance
- 45 ns/100 m maximum and 35 ns/100 m nominal delay skew
- 68 percent speed of light nominal velocity of propagation
- Standards compliant extended frequency
- Blue-white/blue for pair 1, orange-white/orange for pair 2, green-white/green for pair 3 and brown-white/brown for pair 4 color code for conductor
Specifications
Standards/Approvals: ANSI/TIA 568-C.2|NEC/CEC Type CMR (UL 1666)|UL 444|RoHS 2011/65/EU Compliant|ANSI/TIA 862 (Building Automation)|ICEA S-116-732|ICEA S-102-700 and ISO/IEC 11801 Ed. 2.0 (Class E)
