GenSPEED 6 6133785

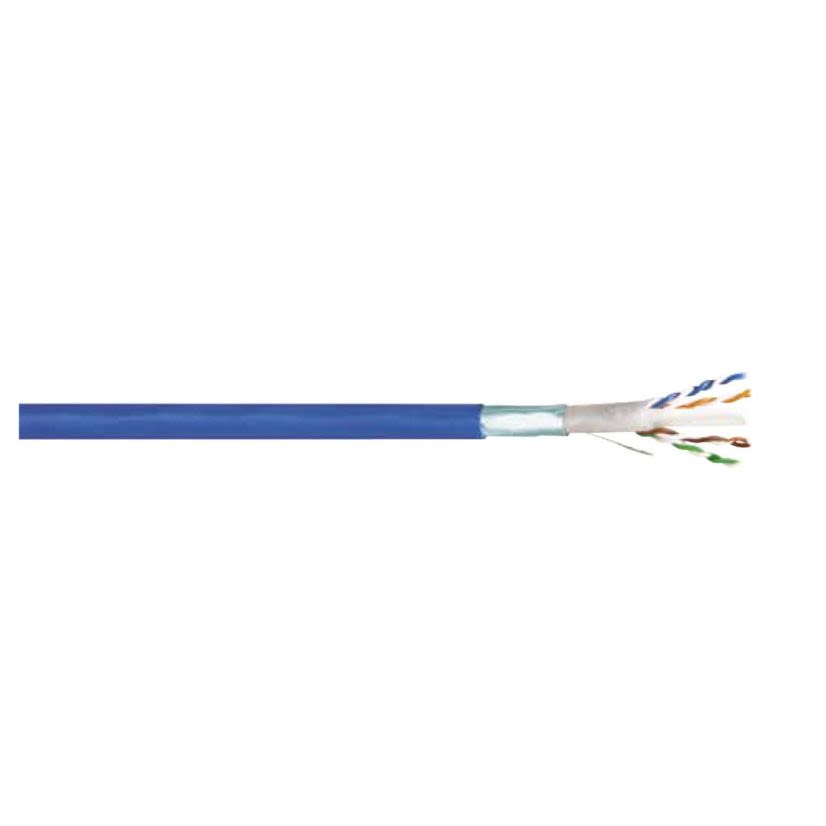

GenSPEED 6 6133785 Type CMR Cat 6 Non-Plenum Cable, Spool Packaging, 23 AWG F/UTP/ScTP Bare Solid Copper Conductor, 1000 ft L
GenSPEED 6 6133785
GenSPEED 6 6133785 Type CMR Cat 6 Non-Plenum Cable, Spool Packaging, 23 AWG F/UTP/ScTP Bare Solid Copper Conductor, 1000 ft LIn Stock: 17000more info
|
In Stock: 17000more info
|
Product Description
GenSPEED 6 Cable, Type CMR Cat 6 Non-Plenum, Spool Packaging, F/UTP/ScTP Bare Solid Copper Conductor, 23 AWG Conductor, 0.31 in OD, 1000 ft Length, 9.38 Ohm Resistance, Polyolefin Insulation, PVC Jacket, Blue Jacket, -20 to 75 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Conductor size23 AWG
Conductor TypeF/UTP/ScTP Bare Solid Copper
Country of OriginUS
Insulation MaterialPolyolefin
Jacket ColorBlue
Jacket MaterialPVC
ManufacturerPrysmian
Outside Diameter0.31 in
Resistance9.38 Ohm
Temperature Rating-20 to 75 deg C
TypeType CMR Cat 6 Non-Plenum
Applications
For CDDI, token ring, ATM, digital video, broadband and baseband analog video
Warranty
1 Year Limited
Features
- Foil shield reduces electromagnetic interference (EMI) for optimal performance
- Performance guaranteed to 250 MHz
- Improved cable temperature rating (90 deg C plenum, 75 deg C riser) for greater protection against increased operating temperatures
- TRU-Mark print legend contains footage marking from 1000 to 0 ft
- IEEE 802.3 1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE+, ANSI/TIA 854 1000 BASE-TX
- 23 AWG solid bare annealed copper
- Polyester backed aluminum foil shield
- 24 AWG stranded (7/32) tinned copper drain wire
- Maximum DC resistance unbalance is 4% (individual pair))
- Nominal velocity of propagation is 70% speed of light
Specifications
Standards/Approvals: UL 444|ETL Listed|ANSI/TIA 568-C.2|NEC/CEC Type CMR (UL 1666), ICEA S-116-732, ICEA S-102-700|ISO/IEC 11801 Ed. 2.0 (Class E)|ANSI/TIA 862|RoHS 2011/65/EU Compliant
