GenSPEED 10 MTP 7131586

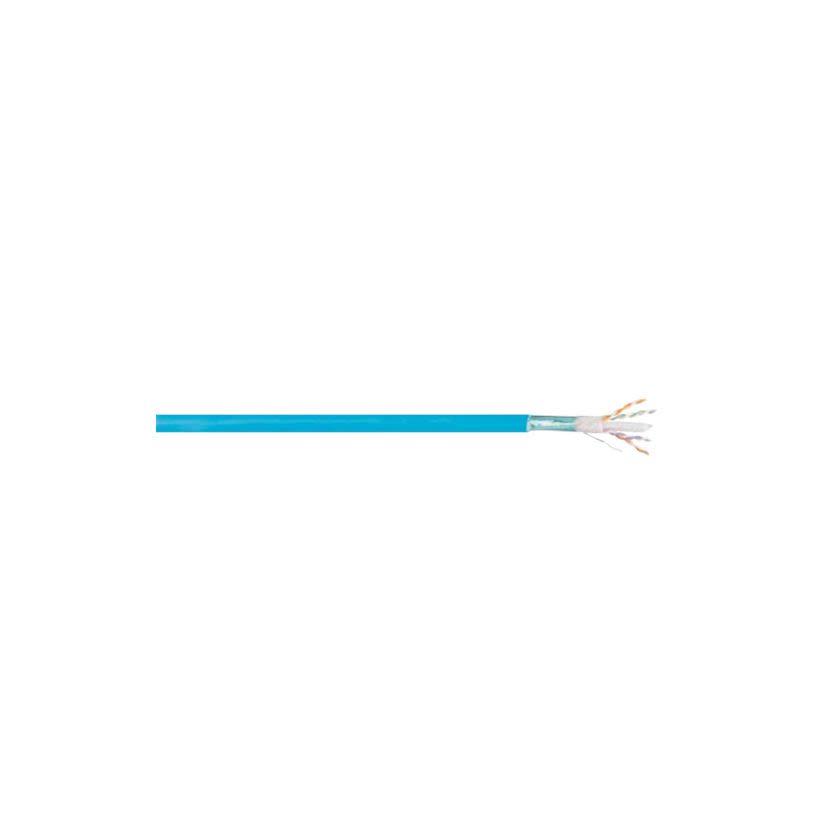

GenSPEED 10 MTP 7131586 Type CMP Cat 6a Plenum Cable, (4 Pairs) 23 AWG F/UTP/STP Annealed Bare Solid Copper Conductor, 1000 ft L
GenSPEED 10 MTP 7131586
GenSPEED 10 MTP 7131586 Type CMP Cat 6a Plenum Cable, (4 Pairs) 23 AWG F/UTP/STP Annealed Bare Solid Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
BrandGenSPEED 10 MTP
MFG #7131586
Werner Part #4027980
Non-stock product. Available to order - lead time may vary.
BrandGenSPEED 10 MTP
MFG #7131586
Werner Part #4027980
Product Description
GenSPEED 10 MTP Cable, Type CMP Cat 6a Plenum, 4 Pairs Conductors, F/UTP/STP Annealed Bare Solid Copper Conductor, 23 AWG Conductor, 0.298 in OD, 1000 ft Length, 9.38 Ohm Resistance, Fluoropolymer Insulation, PVC Coated Jacket, Blue Jacket, -20 to 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Conductor size23 AWG
Conductor TypeF/UTP/STP Annealed Bare Solid Copper
Country of OriginUS
Insulation MaterialFluoropolymer
Jacket ColorBlue
Jacket MaterialPVC Coated
ManufacturerPrysmian
Number of Conductors4 Pairs
Outside Diameter0.298 in
Resistance9.38 Ohm
Temperature Rating-20 to 90 deg C
TypeType CMP Cat 6a Plenum
Applications
IEEE 802.3 10G BASE-T, 1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE+, ANSI/TIA 854 1000 BASE-TX, Digital Video, Broadband and Baseband Analog Video, CDDI, Token Ring and ATM
Warranty
1 Year Limited
Features
- An overall shielded or foiled twisted pair F/UTP cable, requiring grounding and providing industry-leading protection from external cable noise sources, also known as alien crosstalk PSANEXT and PSAACRF
- Improved cable temperature rating for greater protection against increased operating temperatures and for high wattage application
- The internal separator optimizes internal pair geometry to yield superior electrical performance and maintain flexibility, unique cross-web stabilizes each pair-to create a smaller, round cable profile
- TRU-Mark print legend contains footage marking from 1000 to 0 ft
- Polyester backed aluminum foil shield
- Low smoke, flame-retardant plenum jacket
- 4% maximum and less than 1% nominal individual pair DC resistance unbalance
- 45 ns/100 m maximum and 35 ns/100 m nominal delay skew
- 70% speed of light nominal velocity of propagation
- An enhanced overall shielded cable
- Blue-white/blue for pair 1, orange-white/orange for pair 2, green-white/green for pair 3 and brown-white/brown for pair 4 color code for conductor
Specifications
Standards/Approvals: ANSI/TIA 568-C.2|NEC/CEC Type CMP (NFPA 262)|UL Listed CMP-LP|UL 444|RoHS 2011/65/EU Compliant|ANSI/TIA 862|ICEA S-116-732|ICEA S-102-700|ISO/IEC 11801 Ed. 2.0 (Class EA)
