General Electric TM860SCUGEN

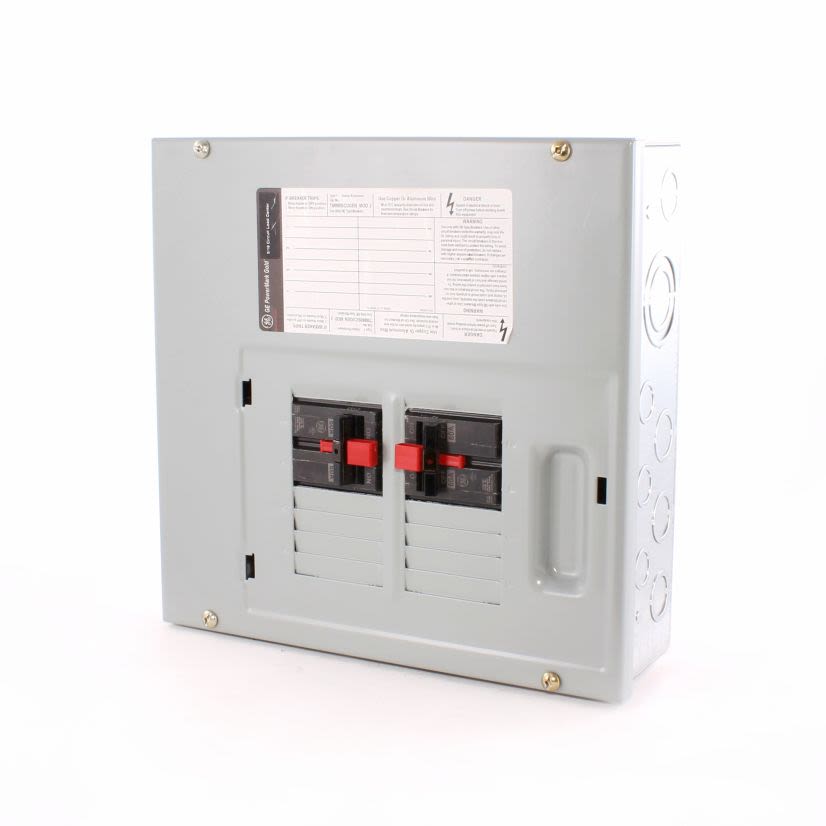

GE PowerMark Gold Industrial Solutions TM860SCUGEN 1-Phase Standard Main Circuit Breaker Loadcenter, 120/240 V AC, 60 A, 1 Pole, 22 kA Interrupt
General Electric TM860SCUGEN
GE PowerMark Gold Industrial Solutions TM860SCUGEN 1-Phase Standard Main Circuit Breaker Loadcenter, 120/240 V AC, 60 A, 1 Pole, 22 kA InterruptNon-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #TM860SCUGEN
Werner Part #32401
UPC783164269437
Non-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #TM860SCUGEN
Werner Part #32401
UPC783164269437
Product Description
GE PowerMark Gold Industrial Solutions Main Circuit Breaker Loadcenter, 1-Phase Standard, 120/240 V AC, 60 A, 1 Pole, 22 kA Interrupt, 8 Circuits, 3-Wire Wiring Configuration, 58 Spaces, 6 to 1 AWG Wire, Surface Mounting, NEMA 1 Enclosure, NEMA 3A Enclosure Box, 11-3/8 in H x 11-9/16 in W x 3-3/8 in D Dimensions
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
Dimensions11-3/8 in H x 11-9/16 in W x 3-3/8 in D
Enclosure Box SizeNEMA 3A
Enclosure TypeNEMA 1
Interrupt Rating22 kA
ManufacturerABB
MaterialAluminum
Number of Circuits8
Number of Poles1
Number of Spaces58
Size of Wire6 to 1 AWG
Suitable For Use WithS1, S2, S3 and SE Series Panelboards
Type1-Phase Standard
Type / Style1-Phase Standard
Voltage120/240 VAC
Wiring Configuration3-Wire
Documents
Applications
Indoor, Commercial, Residential, Electrical Distribution and Control Applications
Included
TGK12 Ground Kit
Features
- Suitable for use as service entrance equipment when installed in accordance with the national electrical Code
- Maintains power to such critical circuits as those for furnace, pump, refrigerator and lights
- Safety and convenience when using a generator 14000 W peak, 11520 continuous load, 48 A at 240 V
- Main lug models field convertible to main breaker
- Split neutrals extend the full length of the interior for ease of wiring
- Entire main lug line converts easily to main breaker
- Front packed in inner carton for added protection
- Straight through main wiring
- Compact box maintains optimum wire bending space
- Top and bottom feed
- Copper bus
- Connected dual breaker mechanism ensures that only one source is active at a time
- (8) 1 in space, (8) (42) 1/2 in space
Specifications
44 Connection
