Functional Devices RIBU1C

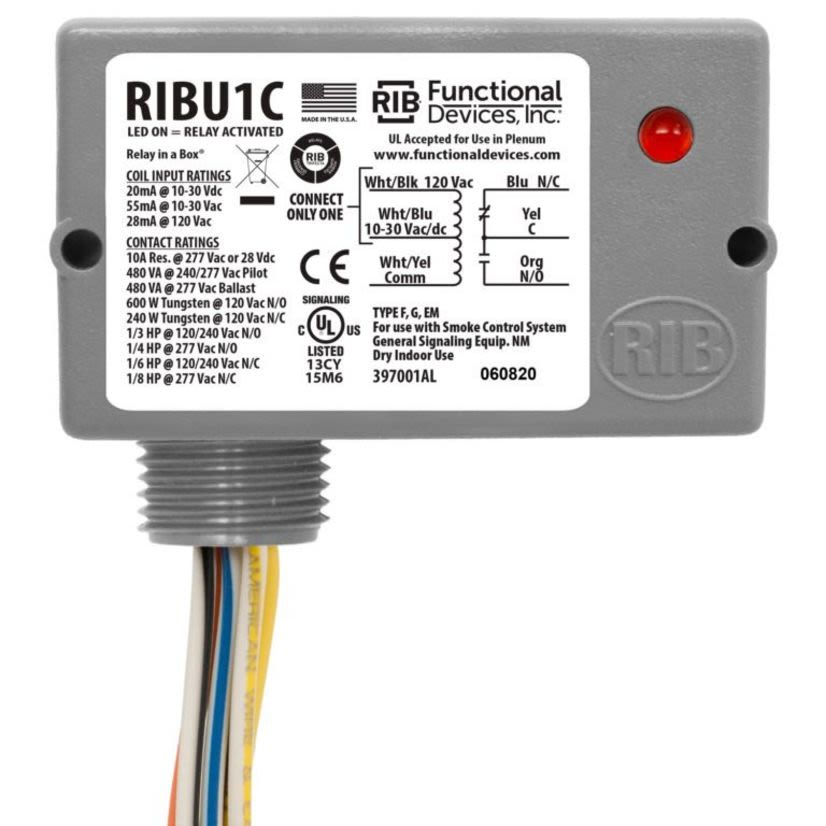

Functional Devices RIBU1C Pilot Relay, 10 A, 1 Form C SPDT Contact, 120 V AC, 30 V AC/DC V Coil
Functional Devices RIBU1C
Functional Devices RIBU1C Pilot Relay, 10 A, 1 Form C SPDT Contact, 120 V AC, 30 V AC/DC V CoilIn Stock: 49more info
|
In Stock: 49more info
|
Product Description
Functional Devices Pilot Relay, 10 A, 3.4 VA, 0.6 W Power, 50/60 Hz Frequency, 120 V AC, 30 V AC/DC Coil, 1 Form C SPDT Contact Form, 10 A at 277 V, 10 A at 28 V Contact, 1 Pole, Surface Mounting, LED Display, NEMA 1 Enclosure, -30 to 140 deg F, 2.8 in W x 1.5 in D x 1.7 in H Dimensions
Attributes
Documents
Features
Attributes
Coil Voltage120 V AC, 30 V AC/DC
Contact Form1 Form C SPDT
Contact Rating10 A at 277 V, 10 A at 28 V
Country of OriginUS
Dimensions2.8 in W x 1.5 in D x 1.7 in H
Display TypeLED
Enclosure TypeNEMA 1
Frequency Rating50/60 Hz
ManufacturerFunctional Devices
Mounting TypeSurface
Number of Poles1
Power Rating3.4 VA, 0.6 W
Temperature Rating-30 to 140 deg F
Features
- 10 million cycles minimum mechanical expected relay life
- 20 ms operate time
- Relay status -LED on equals activated
- 16 in, 600 V rated wires
- Humidity range - 5 to 95 percent (non-condensing)
- -30 to 140 deg F operating temperature
- LED display
- 10 A resistive at 277 VAC, 10 A resistive at 28 VDC, 480 VA pilot duty at 240-277 VAC, 480 VA ballast at 277 VAC, 600 Watt tungsten at 120 VAC (N/O), 240 W tungsten at 120 VAC (N/C), 1/3 hp at 120-240 VAC (N/O), 1/6 hp at 120-240 VAC (N/C), 1/4 hp at 277 VAC (N/O), 1/8 hp at 277 VAC (N/C)
