Federal Signal LP3M-120R

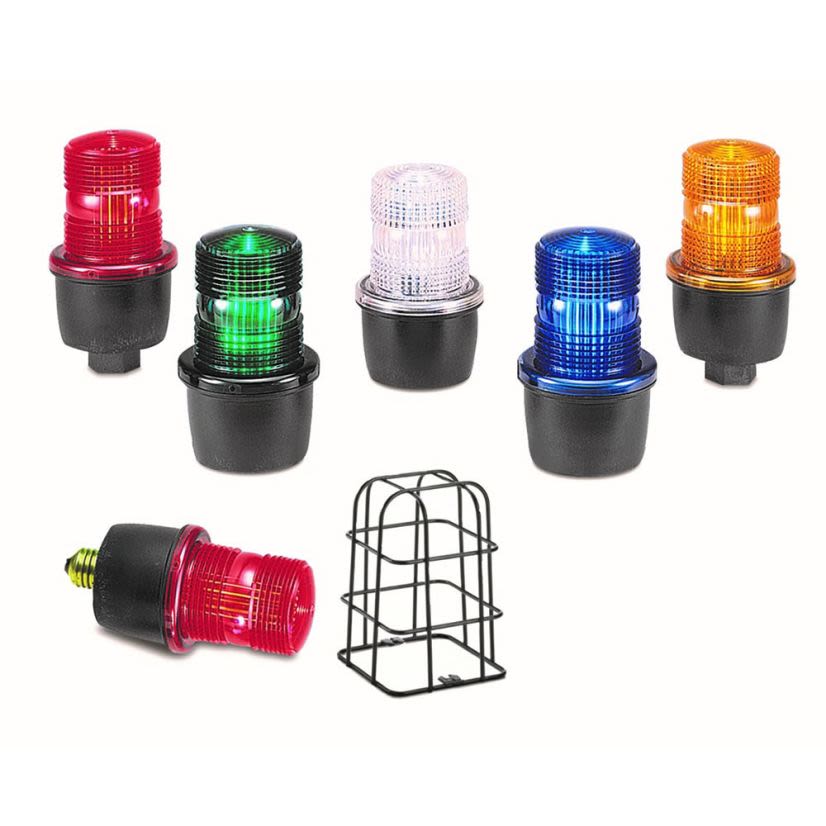

Federal Signal StreamLine LP3M-120R LP3M Low Profile Strobe Light, 120 V AC, Strobe Lamp, Red, Surface Mount, ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed, 4X/IP66/IP69K NEMA Rating
Federal Signal LP3M-120R
Federal Signal StreamLine LP3M-120R LP3M Low Profile Strobe Light, 120 V AC, Strobe Lamp, Red, Surface Mount, ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed, 4X/IP66/IP69K NEMA RatingIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
Federal Signal StreamLine Strobe Light, Low Profile, Series: LP3M, 120 V AC, 0.1 A, Cylindrical, 3-1/8 in Dia, Strobe Lamp, Red, 80 fpm Flash, 175000 cd, 7000 hr Average Life, Surface Mount, 4X/IP66/IP69K, -31 to 150 deg F, Specifications Met: ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed, Polycarbonate Housing, 3.13 in W x 3.13 in D x 5.82 in H
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Average Life7000 hr
ColorRed
Country of OriginUS
Diameter3-1/8 in
Dimensions3.13 in W x 3.13 in D x 5.82 in H
Flash Rate80 fpm
Housing MaterialPolycarbonate
Lamp TypeStrobe
Light Output175000 cd
ManufacturerFederal Signal
Mounting TypeSurface
NEMA Rating4X/IP66/IP69K
Package TypeBOX
SeriesLP3M
ShapeCylindrical
Specifications MetARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed
Temperature Rating-31 to 150 deg F
TypeLow Profile
Type / StyleLow Profile
Voltage Rating120 V AC
Documents
Applications
For indoor/outdoor applications
Warranty
5 Years
Features
- PLC and triac compatible
- Screw-on lens provides easy access
- StreamLine strobes feature high quality, long life strobe tubes which are designed to reduce tungsten build-up for longer lamp maintenance cycles
- High quality dry electrolyte capacitor used in streamline products runs cooler than those used in many competitive strobes, resulting in a more reliable product that won't fail due to overheating
- LP3M features a 1/2 in NPT male pipe with locknut mount and 18 in wire leads
Specifications
ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed
