Ericson 1510-PW6P

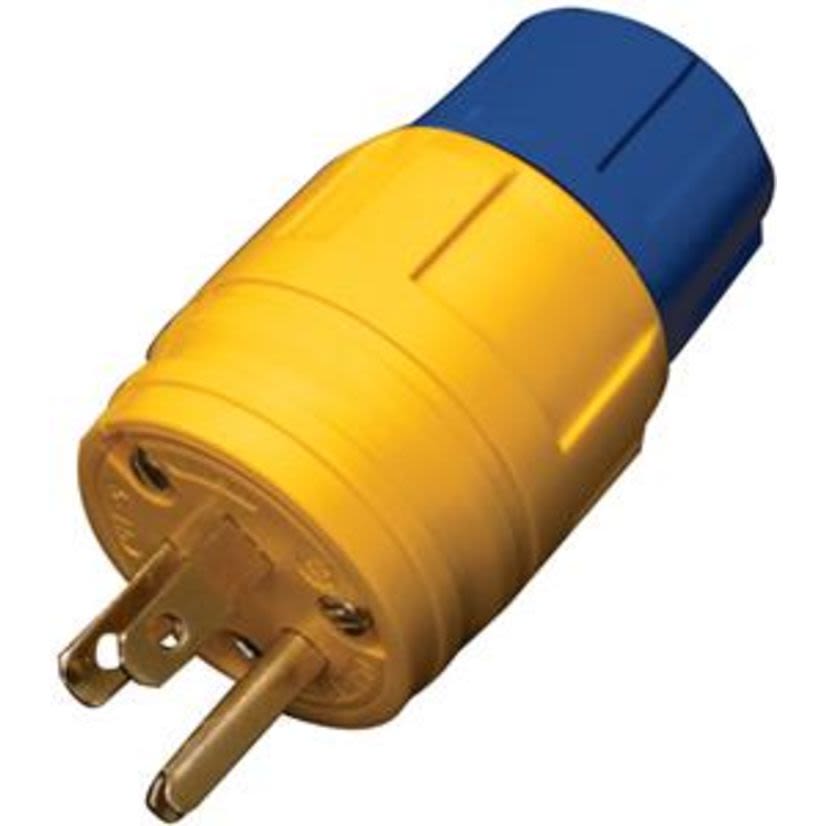

Ericson Perma-Tite 1510-PW6P 1-Phase Grounding Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Brilliant Blue/Radiant Yellow
Ericson 1510-PW6P
Ericson Perma-Tite 1510-PW6P 1-Phase Grounding Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Brilliant Blue/Radiant YellowNon-stock product. Available to order - lead time may vary.
BrandEricson
MFG #1510-PW6P
Werner Part #1628027
UPC782862824764
Non-stock product. Available to order - lead time may vary.
BrandEricson
MFG #1510-PW6P
Werner Part #1628027
UPC782862824764
Product Description
Ericson Perma-Tite Straight Blade Plug, 1-Phase Grounding, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15 NEMA Rating, Industrial Grade, IP67/NEMA 4/4X/6/6P Enclosure, Threaded Terminal, Polybutylene Terephthalate, Brilliant Blue/Radiant Yellow, 1.63 in Dia x 2.68 in L
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBrilliant Blue/Radiant Yellow
Country of OriginUS
Dimensions1.63 in Dia x 2.68 in L
Enclosure TypeIP67/NEMA 4/4X/6/6P
GradeIndustrial
ManufacturerEricson Manufacturing
MaterialPolybutylene Terephthalate
NEMA RatingNEMA 5-15
Number of Poles2
Number of Wires3
Package TypeEACH
Terminal TypeThreaded
Type1-Phase Grounding
Type / Style1-Phase Grounding
Voltage Rating125 V AC
Applications
Food Processing, Pulp and Paper Mills, Refineries, Petrochemical Facilities, Ship Yards, Utilities and Marine Applications
Features
- Tongue and groove sealing system provides environmental protection of NEMA Type 4, 4X, 6, 6P and IP67
- Removable or replaceable self-retained sealing cap provided with connector to keep out contaminants when not in use
- Transparent backplate makes for quick visual wiring checks
- Transparent backplate for easy inspection of individual wiring chamber
- Standard voltages from 120 VAC through 600 VAC
- Perma-Tite 2 plugs and connectors are engineered and manufactured to the highest quality standards to provide the ultimate in electrical service and protection
- They are designed and proven to do their best under the worst conditions in a broad array of the most severe food processing, industrial, marine, construction and petro-chemical work environments
- From the invention of the first dead-front, back-wired electrical plug-in 1929 and patent in 1936 to present day innovations such as Perma-Tite 2 devices that are designed to meet or exceed UL and IEC watertight standards
- Nickel plated blade
- Solid brass blade
- Devices resist high-pressure hose down of 1000 psi
- Plug and connector bodies made with PBT chosen for its high resistance to moisture absorption
- High voltage arcing and carbon tracking
- Keyed body and cover for easy alignment/assembly
- Color coded sealing bushings are provided to fit a variety of cord diameters
- Captive assembly and terminal screws reduce the risk of losing small parts
- Ericson new brilliant blue and radiant yellow high visibility dual color safety system symbolizes that legendary Ericson quality
- Corrosion-resistant nickel plated blades, impact, corrosion, crushing and chemical-resistant
- High visibility Ericson safety yellow and blue colors
- Perma-Tite plugs and connectors all engineered with dead-front, back-wired design
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|IEC Certified|OSHA Compliant|UL Listed
