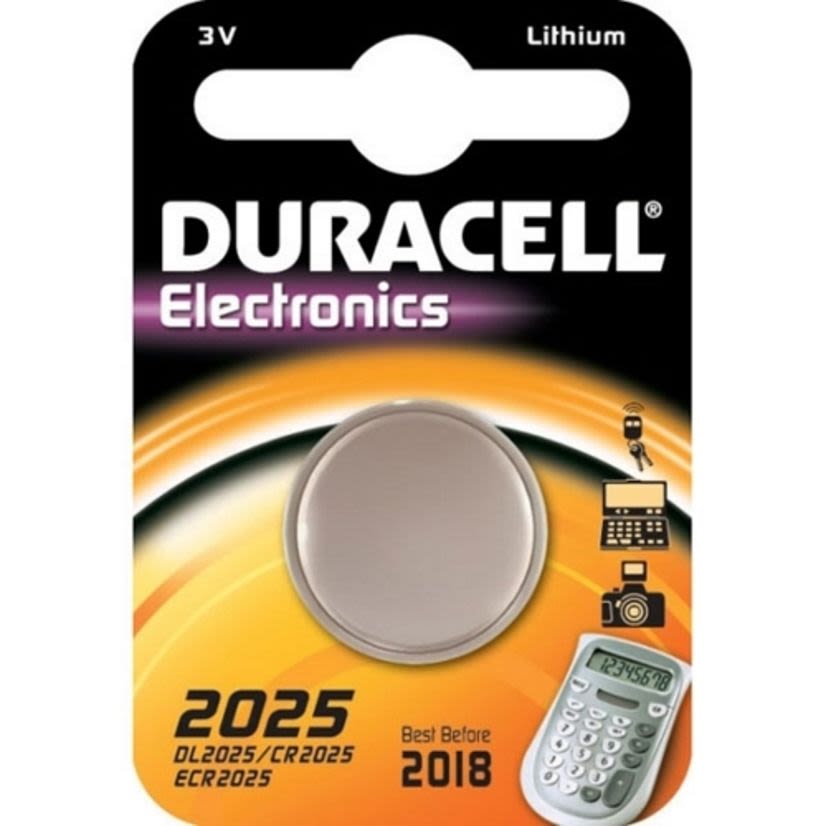

Duracell DL2025BPK
Duracell DL2025BPK Coin Battery, Lithium-Manganese Dioxide, 3 V DC Nominal, 150 mAh Nominal, 2025, 3.1 to 3.3 V DC Charge
Duracell DL2025BPK
Duracell DL2025BPK Coin Battery, Lithium-Manganese Dioxide, 3 V DC Nominal, 150 mAh Nominal, 2025, 3.1 to 3.3 V DC ChargeOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Duracell Coin Battery, Lithium-Manganese Dioxide Chemical System, 3 V DC Nominal, 150 mAh Nominal, 2025 Battery, 3 V DC Discharge Cut-Off, 3.1 to 3.3 V DC Charge, 42 mA Maximum Discharge, Flat Terminal, 10 years Shelf Life, 3500 hr, 0.787 in Dia x 0.098 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Battery Size2025
Charge Voltage3.1 to 3.3 V DC
Chemical SystemLithium-Manganese Dioxide
Country of OriginUS
Dimensions0.787 in Dia x 0.098 in H
Discharge Cut-Off Voltage3 V DC
Life Hour3500 hr
ManufacturerDuracell
Nominal Capacity150 mAh
Nominal Voltage3 V DC
Shelf Life10 years
Terminal TypeFlat
Applications
For alarm systems, cameras and memory back up devices
Features
- 0.79 cu-cm volume
- -20 to 60 deg C operating temperature
- 0.05 g per cell lithium content
- 3.1 - 3.3 V operating voltage
- 3 V at 42 mA cut-off voltage
- 42 mA at 3 VDC discharge current
