Decora T5325-T

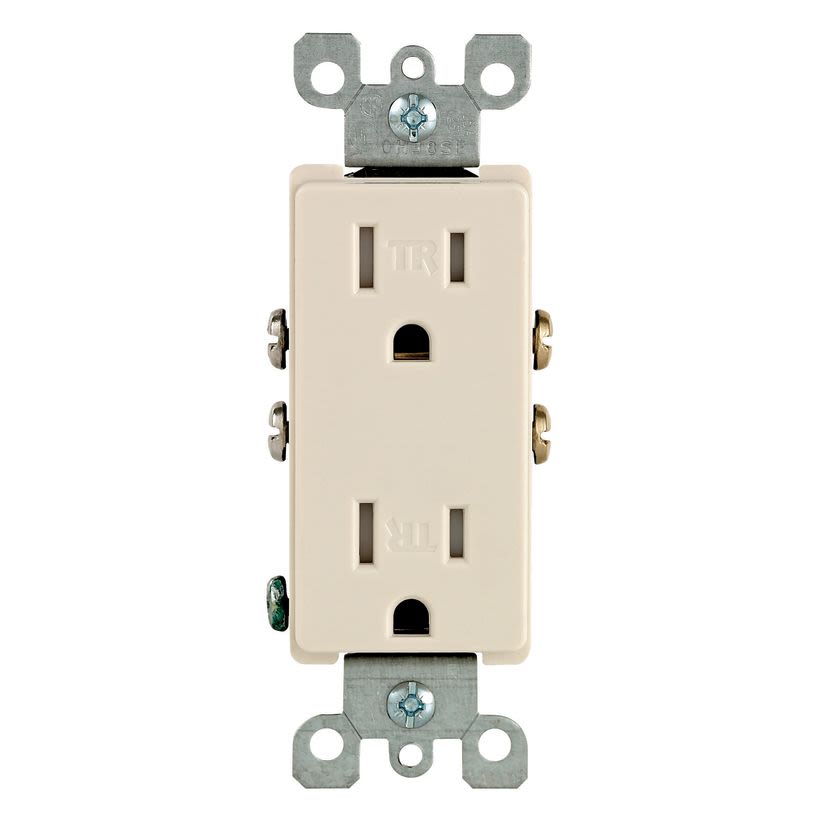

Leviton T5325-T Duplex Grounding Tamper-Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Light Almond
Decora T5325-T
Leviton T5325-T Duplex Grounding Tamper-Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Light AlmondInventory Not Available
Inventory Not Available
Product Description
Leviton, T5325-T, Straight Blade Receptacle, Duplex Grounding Tamper-Resistant, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential Grade, -40 to 60 deg C, Quick-Wire Push-In/Side Wire Terminal, Thermoplastic, Light Almond, 4.2 in H x 1.33 in W x 0.76 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorLight Almond
Country of OriginUS
Dimensions4.2 in H x 1.33 in W x 0.76 in D
GradeResidential
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package TypeEACH
Size of Wire14 AWG
Temperature Rating-40 to 60 deg C
Terminal TypeQuick-Wire Push-In/Side Wire
TypeDuplex Grounding Tamper-Resistant
Type / StyleStraight Blade;Duplex Outlet
Voltage Rating125 V AC
Applications
Commercial, Schools, Libraries, Childcare, Healthcare Facilities, Guest Rooms, Guest Suites, New or Renovated Single and Multi-Family Housing
Warranty
2 years Limited
Features
- Shutter mechanism inside the receptacle blocks access to the contacts unless a 2 or 3-prong plug is inserted, helping ensure hairpins, keys, etc, will be locked out
- Heavy duty construction offers long, trouble-free service life
- TR symbol on the strap or body of device meets NEC requirement
- Tamper resistant
Specifications
- NEMA (WD-6); ANSI (C-73); NOM Certified (057); CSA Certified (File LR-406); CSA C22.22 No.111; UL Listed (File E-13399);UL 20;UL Listed 498;UL Listed 943
