Decora Plus 16352

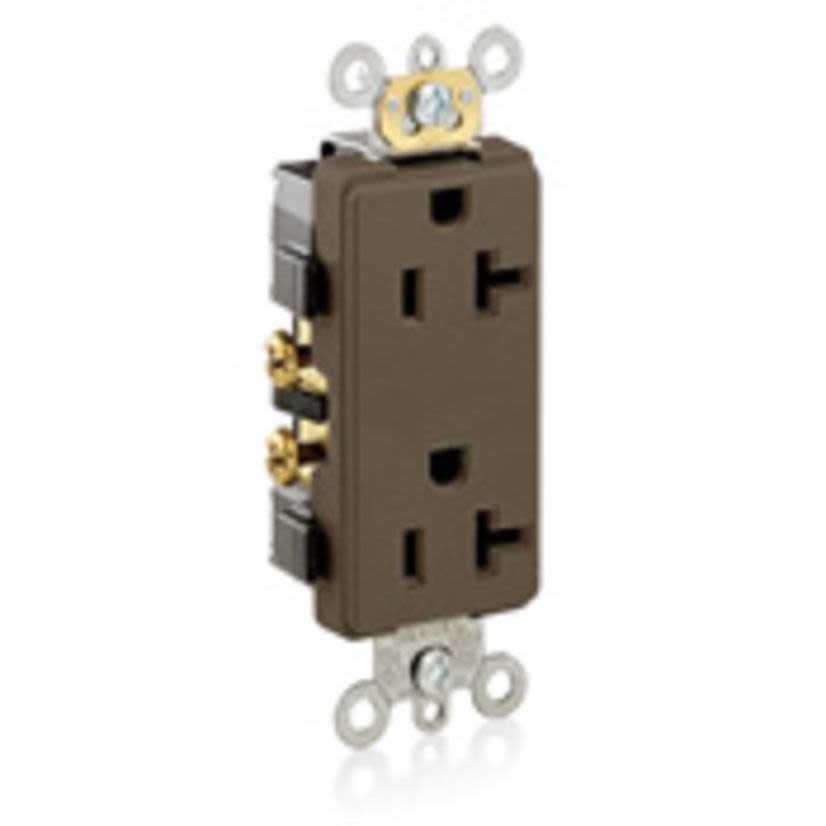

Decora Plus 16352 Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Decora Plus 16352
Decora Plus 16352 Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, BrownNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Decora Plus Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Brown, 4.06 in H x 1.31 in W x 1.14 in D Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorBrown
Country of OriginMX
Dimensions4.06 in H x 1.31 in W x 1.14 in D
Enclosure TypeNEMA WD-1/WD-6
GradeCommercial
Horsepower1 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeHeavy Duty Self Grounding
Type / StyleHeavy Duty Self Grounding
Voltage Rating125 V AC
Documents
Warranty
10 Years Limited
Features
- Heavy gauge locked-in wraparound strap
- Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
- Brass staked on self-grounding clip
- Heavy duty triple-wipe brass contacts for long service life
- Impact-resistant thermoplastic construction
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|CSA C22.2 No. 42 File No. LR-406|NOM 057|UL 498 File No. E13399|UL 94 Flammability Rating
