Decora Plus 16252-W

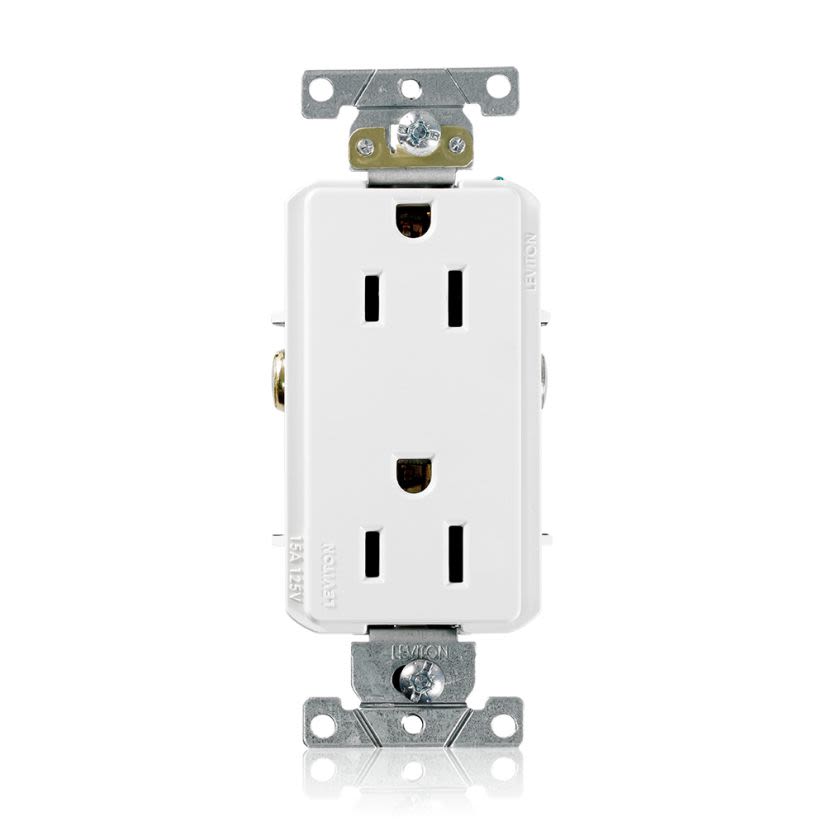

Leviton 16252-W Heavy Duty Self Grounding Duplex Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Decora Plus 16252-W
Leviton 16252-W Heavy Duty Self Grounding Duplex Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, WhiteIn Stock: 40more info
|
In Stock: 40more info
|
Product Description
Leviton, 16252-W, Duplex Receptacle, Heavy Duty Self Grounding, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.52 in W x 1.14 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginMX
Dimensions4.06 in H x 1.52 in W x 1.14 in D
Enclosure TypeNEMA WD-1/WD-6
GradeCommercial
Horsepower1/2 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeHeavy Duty Self Grounding
Type / StyleHeavy Duty Self Grounding
Voltage Rating125 V AC
Documents
Applications
Commercial
Warranty
10 years Limited
Features
- Back wire and side wire terminal options
- Heavy gauge locked-in wraparound strap
- Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
- Brass staked on self-grounding clip
- Heavy duty triple-wipe brass contacts for long service life
- Impact-resistant thermoplastic construction
- Wallbox mounting
- Self-grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- Zinc plated steel strap
- 14 to 10 AWG wire terminal
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|CSA C22.2 No. 42 File No. LR-406|NOM 057|UL 498 File No. E13399|UL 94 Flammability Rating
