Day-Brite DWAE51L840-4-UNV

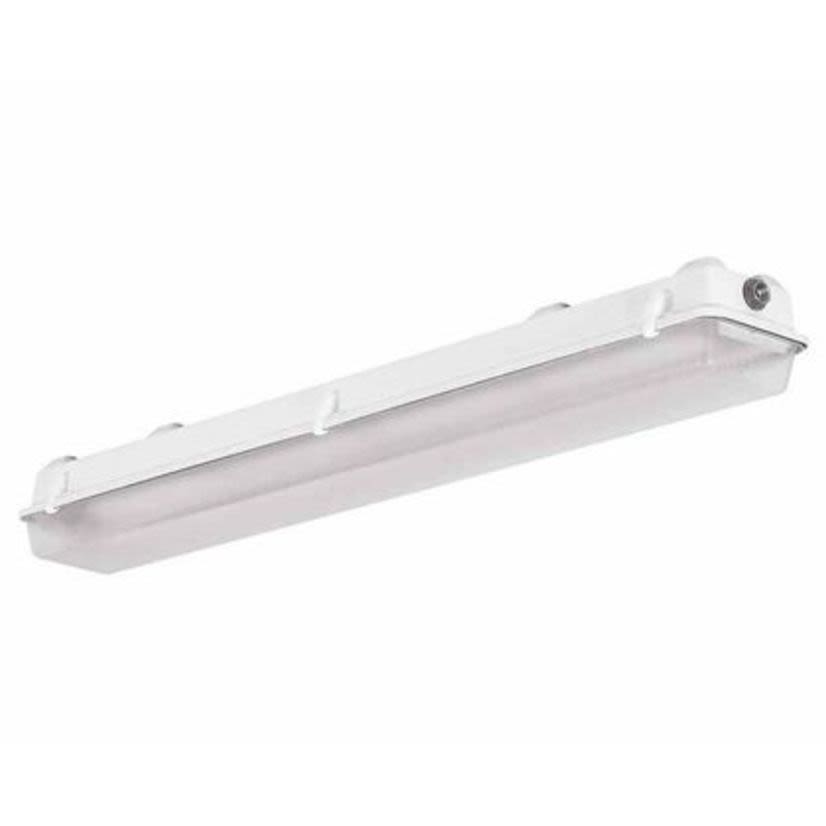

Signify Luminaires DWAE51L840-4-UNV Industrial Sealed Vaporlume Day-Brite Light Fixture, (2) Lamp, 46 W Fixture, 120/277 VAC, White Housing
Day-Brite DWAE51L840-4-UNV
Signify Luminaires DWAE51L840-4-UNV Industrial Sealed Vaporlume Day-Brite Light Fixture, (2) Lamp, 46 W Fixture, 120/277 VAC, White HousingNon-stock product. Available to order - lead time may vary.
BrandDay-Brite
MFG #DWAE51L840-4-UNV
Werner Part #4016428
UPC782343500699
Non-stock product. Available to order - lead time may vary.
BrandDay-Brite
MFG #DWAE51L840-4-UNV
Werner Part #4016428
UPC782343500699
Product Description
Signify Luminaires Day-Brite Light Fixture, Industrial Sealed Vaporlume, 120/277 VAC, 46 W Fixture, 46 W Lamp, 2 Lamps, 50000 hr Average Life, White Light, 4000 K Color Temperature, 80 CRI, 0 to 10 VDC Dimming Driver Ballast, Polycarbonate Lens, 5129 Lumens, IP65 Enclosure, Wall Mounting, Fiberglass Reinforced Polyester Housing Material, White Housing Finish, 50 in L x 7 in W x 5.19 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Average Life50000 hr
Ballast Type0 to 10 VDC Dimming Driver
ColorBlack
Color Rendering Index (CRI)80
Color Temperature4000 K
Country of OriginUS
Dimensions50 in L x 7 in W x 5.19 in H
Enclosure TypeIP65
Fixture Wattage46 W
Housing FinishWhite
Housing MaterialFiberglass Reinforced Polyester
Lamp Wattage46 W
Lens TypePolycarbonate
Light ColorWhite
Lumen5129 Lumens
ManufacturerSignify
MaterialPolycarbonate
Mounting TypeSurface
Number of Circuits2
Number of Lamps2
Package TypeEACH
SeriesTU34
Suitable For Use WithTwo Circuit Track System
TypeIndustrial Sealed Vaporlume
Voltage Rating120/277 V AC
Documents
Applications
Cleanrooms, Parking Garages, Food Processing, Tunnel, Petrol, Convenience, Wet and Damp Locations
Features
- Equivalent to high ballast factor 2-lamp F32T8 at room temperature, 15% energy savings
- Non-conductive, non-corrosive housing
- Smooth exterior surface for easy cleaning
- White one piece, molded fiberglass reinforced polyester body, no rusting, no oxidation and no corrosion
- Standard acrylic lens (A) is stippled sheet of 0.130 in THK nominal
- Continuous compressible closed cell gasket provides tight seal between plastic enclosure and luminaire body
- White ABS cam action latches standard
- Pre-painted steel lighting channel
- Two gasketed threaded (1/2 in trade size) wet location hubs installed on ends
- High efficiency LEDs provide up to 100000 hr rated life (L70, defined as 70% lumen maintenance at rated maximum ambient)
- Dimming to 5% on 0 to 10 VDC controls standard, step dimming (SDIM) option available, 100/40% levels
- Driver and LED boards are accessible from below, LED boards are individually replaceable if required
- Combinations are available providing as much as 117 LPW delivered
- Nominal lumen packages range from 3500 to 7000 Lumens, providing flexibility to optimize light levels for a specific application
- LED sources provide full illumination in low temperature applications, unlike fluorescent sources that provide reduced light levels in very cold environments
- LED sources can be frequently switched with no negative impact on life
- Minimum 80 CRI provides smooth color rendering that rivals or exceeds performance of fluorescent lamps
- Light output from the luminaire contains no infrared or ultraviolet energy, so the light won't heat or fade the objects being lit
