Day-Brite 2TG8432-01-UNV-1/4-EB

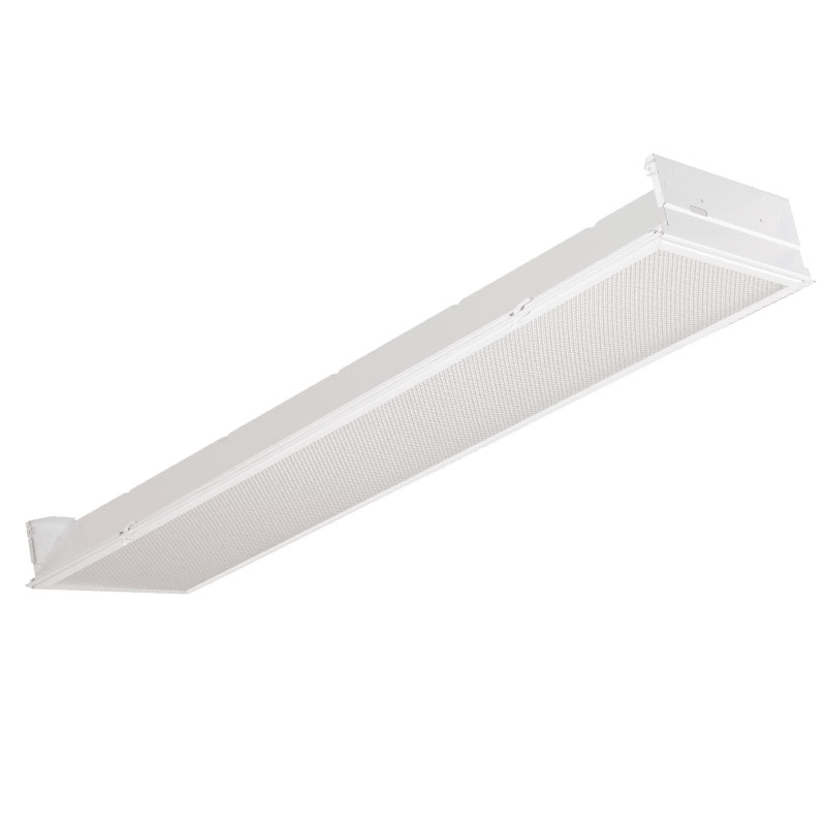

Day-Brite 2TG8432-01-UNV-1/4-EB TG8 Indoor Troffer, (4) T8 Lamp, 78 W Fixture, 120 to 277 V AC, Phosphate Housing
Day-Brite 2TG8432-01-UNV-1/4-EB
Day-Brite 2TG8432-01-UNV-1/4-EB TG8 Indoor Troffer, (4) T8 Lamp, 78 W Fixture, 120 to 277 V AC, Phosphate HousingNon-stock product. Available to order - lead time may vary.
BrandDay-Brite
MFG #2TG8432-01-UNV-1/4-EB
Werner Part #2375573
UPC734340976595
Non-stock product. Available to order - lead time may vary.
BrandDay-Brite
MFG #2TG8432-01-UNV-1/4-EB
Werner Part #2375573
UPC734340976595
Product Description
Day-Brite Indoor Troffer, Series: TG8, 120 to 277 V AC, 78 W Fixture, T8 Lamp, 32 W Lamp, 4 Lamps, Grid Recessed Trim, 3000 hr Average Life, 3500 K Color Temperature, 70 CRI, Electronic Ballast, #12 Pattern Prismatic Acrylic Lens, NEMA G Enclosure, Ceiling Mounting, Phosphate Housing Material, 3-3/16 in L x 24 in W Dimensions
Attributes
Documents
Applications
Features
Attributes
Average Life3000 hr
Ballast TypeElectronic
Ceiling Opening6-7/8 in
Color Rendering Index (CRI)70
Color Temperature3500 K
Country of OriginMX
Diameter6 in
Dimensions3-3/16 in L x 24 in W
Enclosure TypeNEMA G
Fixture Wattage78 W
Housing MaterialPhosphate
Insulation TypeIC
Lamp TypeT8
Lamp Wattage32 W
Lens Type#12 Pattern Prismatic Acrylic
ManufacturerSignify
Mounting TypeCeiling
Number of Lamps4
SeriesTG8
Suitable For Use With6 in Trim
TypeEconomy Universal
Voltage Rating120 to 277 V AC
Applications
Office, Banks, Hospitality, Petrol and Convenience and Fashion
Features
- Smooth rolled edges on all four sides for easy handling
- Die-formed one piece housing includes stiffening embosses and provides increased rigidity
- Housing is multi-stage phosphate treated for maximum corrosion resistance and finish coat is high reflectance baked white enamel
- Lamp pin openings in housing ends for easier relamping when using straight lamps (can be relamped without using openings)
- Integral baffling system to prevent light leaks
- Integral wire hanger holes for independent wire suspension
- Embosses with holes provided in housing end for screwing to T-Bar if desired
- Factory installed access plate in housing top includes 7/8 in hole with rolled edge and 7/8 in K.O
- Some models utilizing multiple ballasts will be supplied with a top mounted ballast box, which will increase the height of the luminaire
- T-Bar grid clips built into luminaire, no extra parts required
- Carton includes integral carrying handle for easy handling and tear tape for easy opening
- Self-contained fluorescent emergency power packs can be incorporated, listed for dry locations
- Full "C" channel door frames for improved lens support and reduced shipping damage
- Flat steel door frame features smooth rolled edges inside and outside
- Door frame uses T-hinges and can be hinged and latched from either side
- Opposable stainless steel spring loaded latches are standard for easy operation and consistent retention
- Door frame has true mitered corners
- Low profile housing
- Designed for use with standard grid ceiling members, 1-1/2 in maximum height
- White door finish
