Day-Brite DWAE232-UNV-1/2-EB

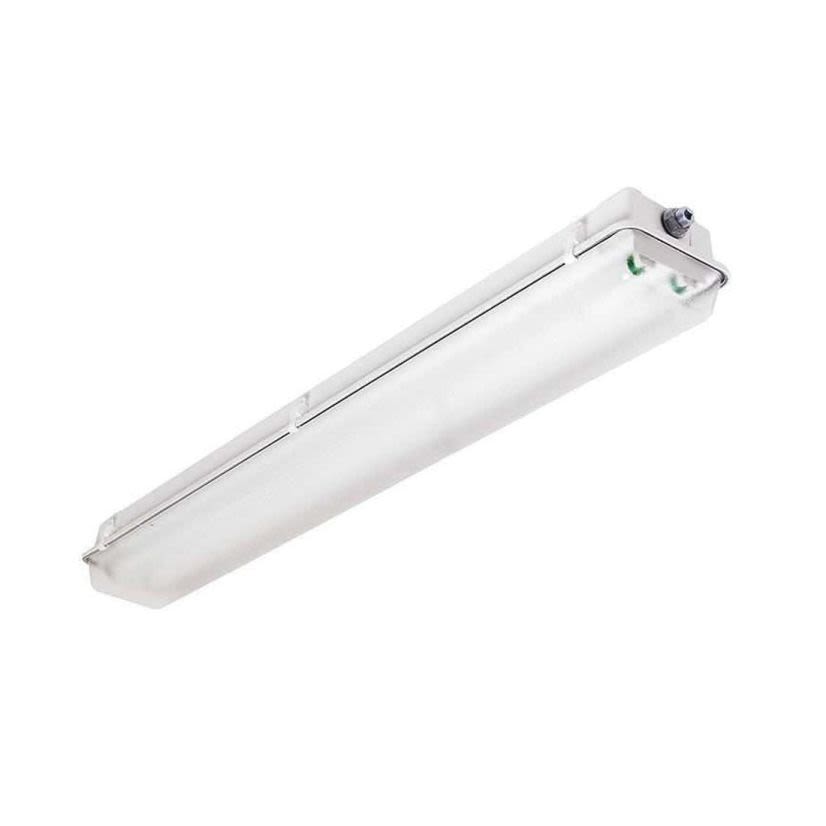

Signify Luminaires Day-Brite DWAE232-UNV-1/2-EB Industrial Sealed Vaporlume Light Fixture, (2) Fluorescent/T8 Lamp, 32 W Fixture, 120/277 VAC, Baked White Enamel Housing
Day-Brite DWAE232-UNV-1/2-EB
Signify Luminaires Day-Brite DWAE232-UNV-1/2-EB Industrial Sealed Vaporlume Light Fixture, (2) Fluorescent/T8 Lamp, 32 W Fixture, 120/277 VAC, Baked White Enamel HousingNon-stock product. Available to order - lead time may vary.
BrandDay-Brite
MFG #DWAE232-UNV-1/2-EB
Werner Part #262539
UPC734340608267
Non-stock product. Available to order - lead time may vary.
BrandDay-Brite
MFG #DWAE232-UNV-1/2-EB
Werner Part #262539
UPC734340608267
Product Description
Signify Luminaires Day-Brite Light Fixture, Industrial Sealed Vaporlume, 120/277 VAC, 32 W Fixture, 380 mA, Fluorescent/T8 Lamp, 32 W Lamp, 2 Lamps, Electronic Ballast, DR Acrylic Lens, IP65, Surface Mount, Fiberglass Reinforced Polyester Housing, Baked White Enamel Housing, 52 in L x 8-1/4 in W x 6-1/4 in H
Attributes
Documents
Applications
Features
Attributes
Ballast TypeElectronic
ColorBlack
Country of OriginMX
Dimensions52 in L x 8-1/4 in W x 6-1/4 in H
Enclosure TypeIP65
Fixture Wattage32 W
Housing FinishBaked White Enamel
Housing MaterialFiberglass Reinforced Polyester
Lamp TypeT8
Lamp Wattage32 W
Lens TypeDR Acrylic
ManufacturerSignify
MaterialPolycarbonate
Mounting TypeSurface
Number of Circuits2
Number of Lamps2
Package Height6.25 in
Package Length52 IN
Package TypeEACH
Package Weight13.45 lb
Package Width8.25 IN
SeriesTU23
Suitable For Use WithTwo Circuit Track System
TypeIndustrial Sealed Vaporlume
Type / StyleIndustrial Sealed Vaporlume
Voltage Rating120/277 V AC
Documents
Applications
Cleanrooms, Parking Garages, Food Processing, Tunnel, Petrol, Convenience, Wet and Damp Locations Applications
Features
- The vaporlume wet location industrial is a wet location listed luminaire with a non-metal exterior, housing and lens assembly
- Acceptable for outdoor as well as indoor installations
- Can be surface (wall/ceiling) or suspended mounted unless otherwise specified
- Wet location areas of high humidity, water vapor, rain, incidental water spray or other non-corrosive or non-flammable liquid
- IP65 rating standard
- Non-conductive, non-corrosive housing
- Smooth exterior surface for easy cleaning
- White, molded fiberglass reinforced polyester body
- High impact DR acrylic molded lens
- Continuous closed cell, foam-in place gasket
- ABS cam action standard latches
- Lighting channel has high reflectance baked white enamel finish
- Two gasketed threaded 1/2 in trade size wet location hubs installed on ends
- Electronic ballasts are standard on high output (44HO and 48HO) models, please include EB ballast designator in catalog number
- Magnetic HO ballasts are more expensive than electronic and are suitable for cold ambient applications only
- NSF certified for non-food zone installations
