Cutler-Hammer Series BR120

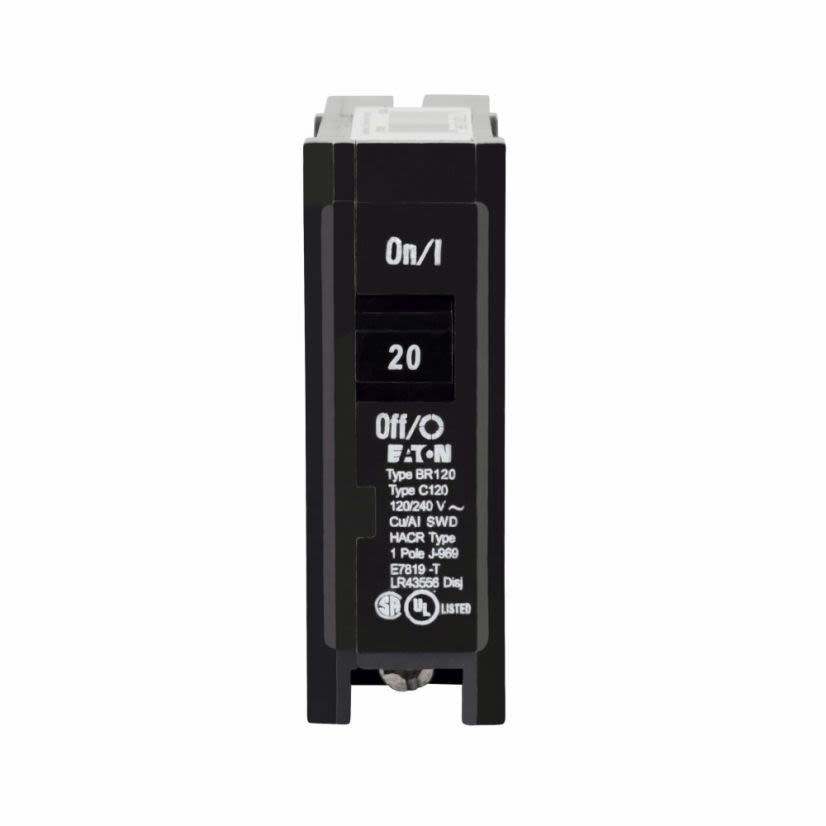

EATON BR120 Type BR Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Cutler-Hammer Series BR120
EATON BR120 Type BR Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic TripIn Stock: 306more info
|
BrandCutler-Hammer Series
MFG #BR120
Werner Part #24242
UPC786676362108
In Stock: 306more info
|
BrandCutler-Hammer Series
MFG #BR120
Werner Part #24242
UPC786676362108
Product Description
EATON Circuit Breaker, Type BR, 120/240 V AC, 20 A, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, 14 to 4 AWG Wire, NEMA 1/4X/3R Enclosure, Plug-On Mounting, 600 to 750 deg C, 2-1/2 in L x 1 in W x 3 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection TypePlug-On
Country of OriginDO
Dimensions2-1/2 in L x 1 in W x 3 in H
Enclosure TypeNEMA 1/4X/3R
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypePlug-On
Number of Poles1
Package TypeEACH
Phase1
Size of Wire14 to 8 AWG
Temperature Rating600 to 750 deg C
Trip TypeThermal Magnetic
TypeType BR
Type / StyleType BR
Voltage120/240 VAC
Documents
Applications
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Type BR Loadcenters and Circuit Protection Applications
Warranty
10 years
Features
- Common trip requires one 1 in space
- All BR circuit breakers have rejection tab feature
- Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
- For 1-pole circuit breakers carry listing for HACR application
