Cooper Lighting Solutions L1738PX

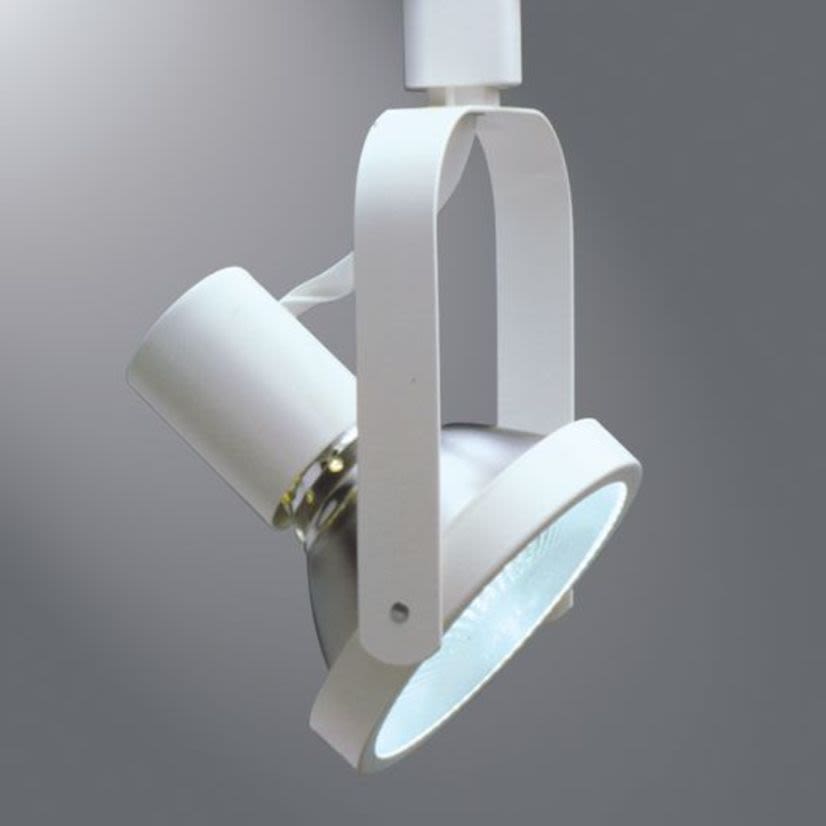

Halo L1738PX L1738 Line Voltage Lampholder, Halogen Lamp, 120 V AC, Gimbal Ring Head, 10-1/4 in Max Extension
Cooper Lighting Solutions L1738PX
Halo L1738PX L1738 Line Voltage Lampholder, Halogen Lamp, 120 V AC, Gimbal Ring Head, 10-1/4 in Max ExtensionNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Halo, L1738PX, Lampholder, Line Voltage, Series: L1738, Halogen Lamp, 120 V AC, 250 W Lamp, 10-1/4 in Maximum Extension, 1 Lamps, Gimbal Ring Head, 5 in Diameter, 8 in Width, 1.958 in Length, Track Mounting, Aluminum/Metal/Polycarbonate Housing Material, Satin White Housing Finish
Attributes
Documents
Applications
Warranty
Features
Attributes
ColorWhite
Country of OriginCN
Diameter5 in
Housing FinishSatin White
Housing MaterialAluminum/Metal/Polycarbonate
Lamp TypeHalogen
Lamp Wattage250 W
ManufacturerCooper Lighting Solutions
MaterialPolycarbonate
Number of Circuits1
Number of Lamps1
Package TypeEACH
SeriesL1738
Suitable For Use WithL650, L651, L652, L653 Miniature 1-Circuit Track Lighting System
TypeLine Voltage
Type / StyleLine Voltage
Voltage Rating120 V AC
Documents
Applications
Lighting Applications
Warranty
Limited
Features
- Provides effective task or accent lighting
- Die formed gimbal rig contains lamp retention springs, provide lamp regress for optimum lamp position, provides uniform appearance between lamp types
- Quick-lock adapter - attaches electrically and mechanically anywhere along the Track
- Formed aluminum housing for optimal heat dissipation
- Yoke allows two axis rotation for maximum aiming adjustability
- 338 deg horizontal rotation and 0 to 90 deg vertical pivot
- Lamps - supports standard PAR and Halogen PAR lamps
- Electrical quick-lock adapter polycarbonate casing
- Visual polarity line assures proper grounding
- Two position conductor allows use in single-circuit and either circuit of two circuit Track
- Matching finish yoke allows lampholder to rotate 338 deg and adjust vertically from +/-90 deg
