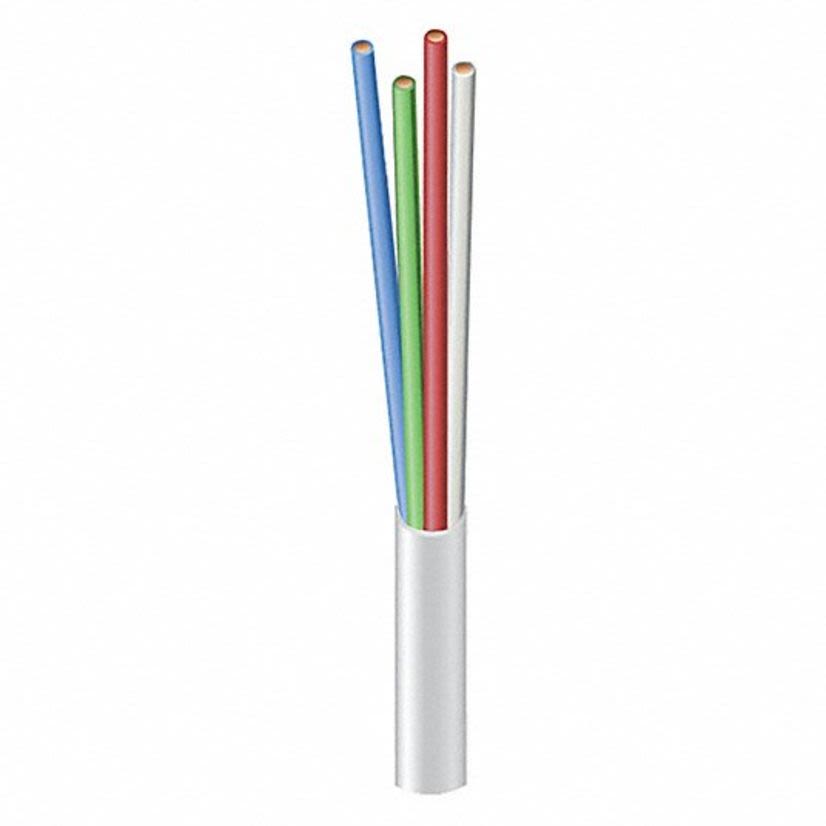

Coleman Cable 553040401
CCI Barostat 553040401 Type CL2 Thermostat Cable, Reel Packaging, 150 V AC, (4) 18 AWG Bare Solid Copper Conductor, 250 ft L
Coleman Cable 553040401
CCI Barostat 553040401 Type CL2 Thermostat Cable, Reel Packaging, 150 V AC, (4) 18 AWG Bare Solid Copper Conductor, 250 ft LIn Stock: 3000more info
|
In Stock: 3000more info
|
Product Description
CCI Barostat Thermostat Cable, Type CL2, Series: 55304, Reel Packaging, 150 V AC, 4 Conductors, Bare Solid Copper Conductor, 18 AWG Conductor, 0.14 in OD, 250 ft Length, 6.32 Ohm Resistance, Polypropylene Insulation, PVC Jacket, Brown/White Jacket, -20 to 60 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Conductor size18 AWG
Conductor TypeBare Solid Copper
Country of OriginUS
DiameterOutside: 0.14 in
Insulation MaterialPolypropylene
Jacket ColorBrown/White
Jacket MaterialPVC
ManufacturerSouthwire Company
Number of Conductors4
Outside Diameter0.14 in
Resistance6.32 Ohm
Series55304
Temperature Rating-20 to 60 deg C
TypeType CL2
Voltage Rating150 V AC
Applications
For Class 2 power limited circuit cable used in thermostat control applications
Warranty
1 year Limited Lifetime
Features
- Smooth jacket eliminates snagging and tearing
- PVC jacket, polypropylene insulation ensures excellent strip ability
- Sunlight-resistant jacket
- 27.7 lb/1m ft nominal approximate cable weight
- 25 pF/ft nominal capacitance between conductors at 1 kHz
- 6.32 Ohm/1000 ft nominal DC resistance per conductor at 20 deg C
- Red, white, green, blue insulation colors
Specifications
Resistance: 6.32 Ohm
