Carol GCR1405.21.01

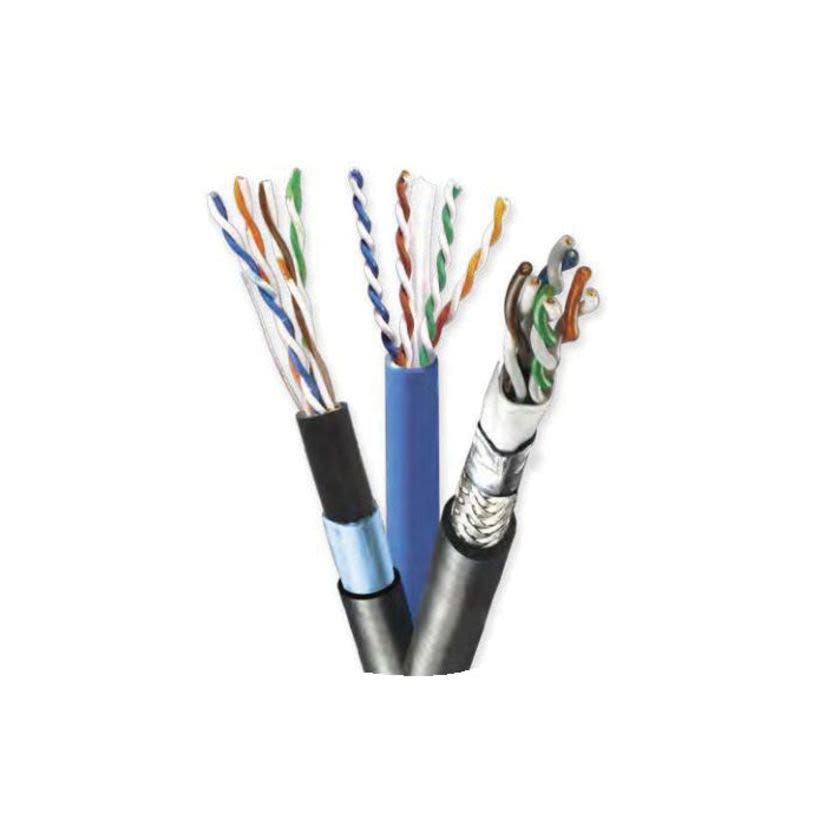

General Cable Carol GCR1405.21.01 Cat 5e Twisted Shielded Industrial Ethernet Cable, Spool Packaging, 600 V AC, (4 Pairs) 24 AWG Solid Copper Conductor, 1000 ft L
Carol GCR1405.21.01
General Cable Carol GCR1405.21.01 Cat 5e Twisted Shielded Industrial Ethernet Cable, Spool Packaging, 600 V AC, (4 Pairs) 24 AWG Solid Copper Conductor, 1000 ft LOut of Stockmore info
|
Out of Stockmore info
|
Product Description
General Cable Carol Industrial Ethernet Cable, Cat 5e Twisted Shielded, Series: GCR1405, Spool Packaging, 600 V AC, 4 Pairs Conductors, Solid Copper Conductor, 24 AWG Conductor, 0.27 in OD, 1000 ft Length, HDPE Insulation, PVC Jacket, Black Jacket, -40 to 75 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Conductor size24 AWG
Conductor TypeSolid Copper
Country of OriginUS
Insulation MaterialHDPE
Jacket ColorBlack
Jacket MaterialPVC
ManufacturerPrysmian
Number of Conductors4 Pairs
Outside Diameter0.27 in
SeriesGCR1405
Temperature Rating-40 to 75 deg C
TypeCat 5e Twisted Shielded
Voltage Rating600 V AC
Applications
IEEE 802.3 100 BASE-TX, 10 BASE-T, PoE, PoE+, CDDI, Token Ring, ATM, Broadband and Baseband Analog Video, Voice, T1, Harsh Industrial Environments and ODVA EtherNet/IP
Warranty
1 Year Limited
Features
- TRU-Mark print legend
- Industrial-grade oil- and sunlight-resistant jacket
- Third-party verified for guaranteed performance
- 2 to 44.9 dB/100 m insertion loss
- 3% maximum DC resistance unbalance, ind pair
- 17 pF at 1 kHz maximum mutual capacitance
- 70% speed of light nominal velocity of propagation
- Pair 1 - white/blue, pair 2 - white/orange, pair 3 - white-green, pair 4 - white/brown insulation color
- 100% F/UTP foil shield reduces electromagnetic interference (EMI) for optimal performance
Specifications
Standards/Approvals: UL Listed to ANSI/TIA 568-C.2 Category 5e|UL AWM Style 21047|UV RES per UL 444|RoHS II Compliant|MSHA P-07-KA140022
