Carol C2535A.41.10

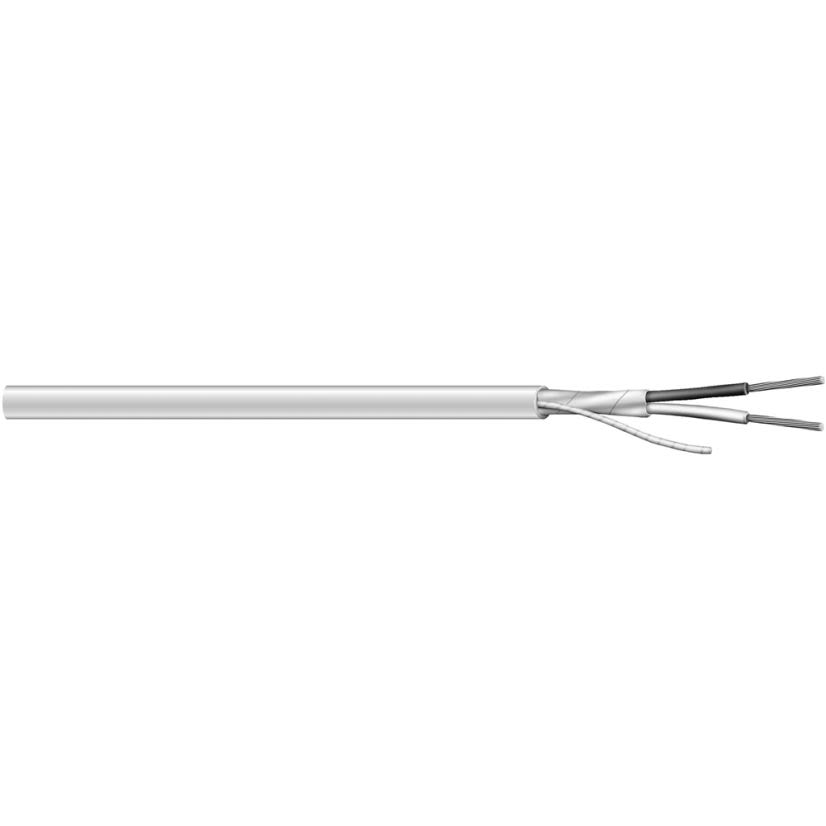

General Cable Carol C2535A.41.10 Type CM Foil Shielded Multi-Conductor Communication and Control Cable, Reel Packaging, 300 V AC, (5) 18 AWG Fully Annealed Stranded Tinned Copper Conductor, 1000 ft L
Carol C2535A.41.10
General Cable Carol C2535A.41.10 Type CM Foil Shielded Multi-Conductor Communication and Control Cable, Reel Packaging, 300 V AC, (5) 18 AWG Fully Annealed Stranded Tinned Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
General Cable Carol Communication and Control Cable, Type CM Foil Shielded Multi-Conductor, Reel Packaging, 300 V AC, 5 Conductors, Fully Annealed Stranded Tinned Copper Conductor, 18 AWG Conductor, 0.213 in OD, 1000 ft Length, 16/30 Strands, Polyethylene Insulation, PVC Jacket, Gray Jacket, -20 to 75 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Conductor size18 AWG
Conductor TypeFully Annealed Stranded Tinned Copper
Country of OriginUS
Insulation MaterialPolyethylene
Jacket ColorGray
Jacket MaterialPVC
ManufacturerPrysmian
Number of Conductors5
Outside Diameter0.213 in
Package TypeREEL
Strands16/30
Temperature Rating-20 to 75 deg C
TypeType CM Foil Shielded Multi-Conductor
Voltage Rating300 V AC
Documents
Applications
Recording Studios and Sound Stages, Broadcast and Sound Systems, Computers and Industrial Equipment Control Applications
Warranty
1 year Limited
Features
- Premium grade, color coded polyethylene insulation
- 23 pF/ft capacitance between conductors, 41 pF/ft capacitance between one conductor and other conductors connected to shield
- Excellent electrical properties
- 25% shield overlap provides excellent shielding efficiency
- Superior shielding effectiveness
- 24 to 12 AWG fully annealed solid/stranded tinned copper per ASTM B-33
Specifications
- CSA CMG Flame Test
- NEC Article 725 Type CL2
- NEC Article 800 Type CM
- RoHS Compliant
- UL 2093
- UL 70000 BTU Vertical Tray Flame Test
