Belden 9318-060U1000

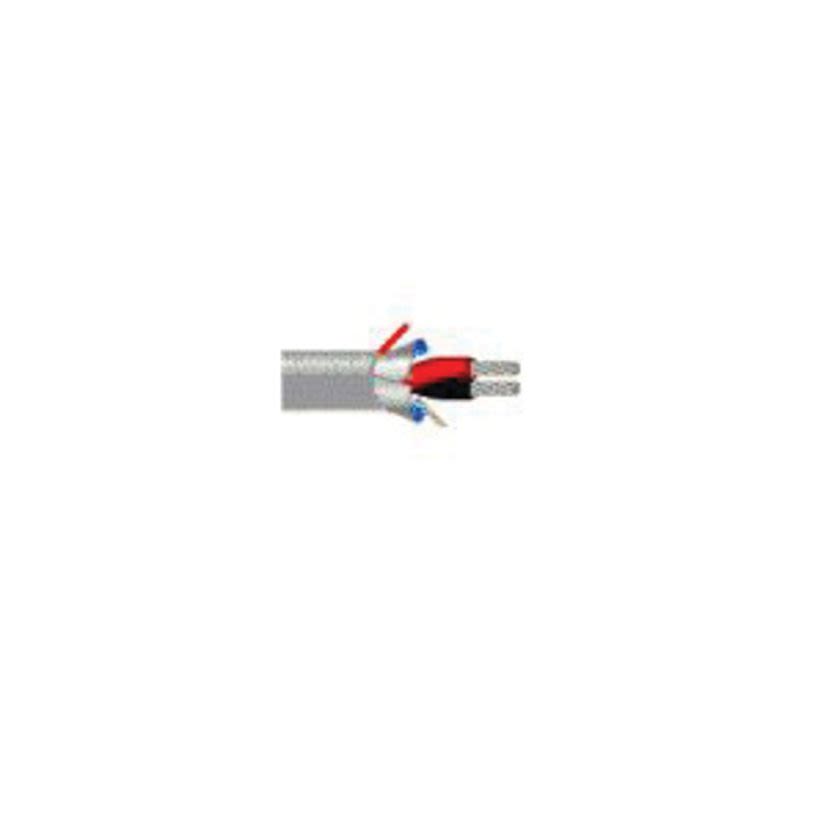

Belden® 9318-060U1000 Multi-Conductor Shielded PLTC Cable, 300 VAC, (2) 18 AWG Stranded Tinned Copper Conductor
Belden 9318-060U1000
Belden® 9318-060U1000 Multi-Conductor Shielded PLTC Cable, 300 VAC, (2) 18 AWG Stranded Tinned Copper ConductorIn Stock: 7000more info
|
In Stock: 7000more info
|
Product Description
Belden® PLTC Cable, Multi-Conductor Shielded, 300 VAC, 5.5 A, 2 Conductors, Stranded Tinned Copper Conductor, 18 AWG Conductor, 0.233 in OD, 19x30 Strands, 5.96 Ohm Resistance, PVC Insulation, PVC Jacket, Chrome Jacket, -30 to 105 deg C
Attributes
Documents
Features
Specifications
Attributes
Conductor size18 AWG
Conductor TypeStranded Tinned Copper
Insulation MaterialPVC
Jacket ColorChrome
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors2
Outside Diameter0.233 in
Resistance5.96 Ohm
Strands19/30
Temperature Rating-30 to 105 deg C
TypeType PLTC Multi-Conductor Shielded
Voltage Rating300 V
Documents
Features
0.037 in nominal jacket wall thicknessBeldfoil® aluminum foil-polyester tape outer shield material(100% coverage)26 lb maximum recommended pulling tension2.23 in minimum bend radius/minor axis100 pF/ft nominal capacitance conductor to shield54 pF/ft nominal capacitance conductor to conductor0.017 in insulation wall thicknessTwisted pair stranded tinned copper conductor
Specifications
Standards/Approvals: UL Listed, CE Certified, NEC Certified, CEC Certified, RoHS Compliant
