Belden 8770

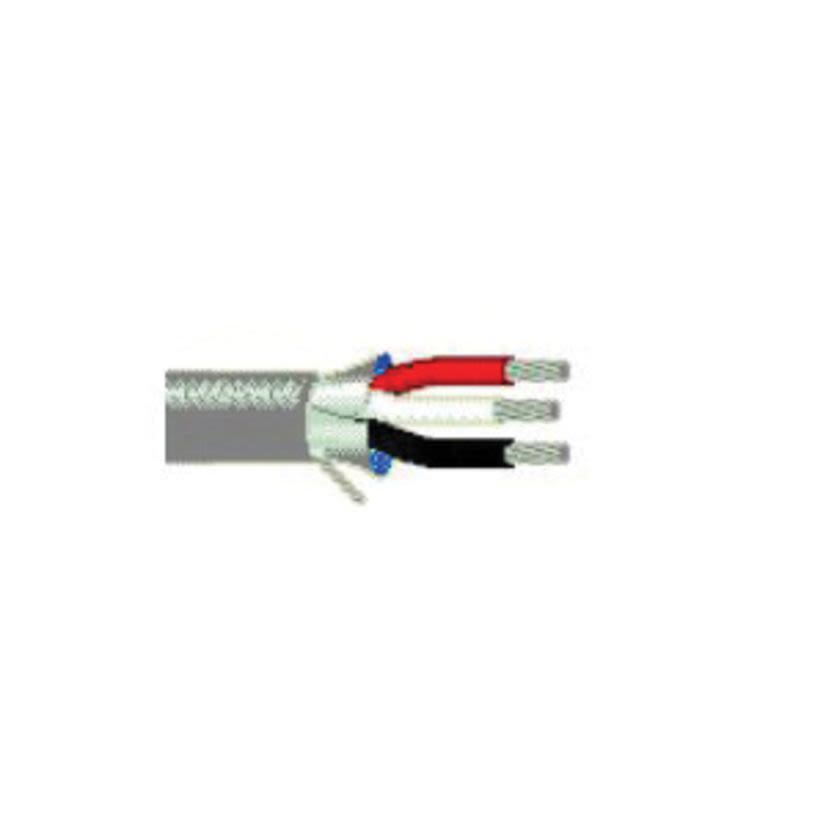

Belden 8770 Audio Multi-Conductor Non-Plenum Shielded Control/Instrumentation Cable, 300 V AC, (3) 18 AWG Stranded Tinned Copper Conductor
Belden 8770
Belden 8770 Audio Multi-Conductor Non-Plenum Shielded Control/Instrumentation Cable, 300 V AC, (3) 18 AWG Stranded Tinned Copper ConductorIn Stock: 14000more info
|
In Stock: 14000more info
|
Product Description
Belden Control/Instrumentation Cable, Audio Multi-Conductor Non-Plenum Shielded, Series: 8770, 300 V AC, 5.3 A, 3 Conductors, Stranded Tinned Copper Conductor, 18 AWG Conductor, 0.246 in OD, 16/30 Strands, Polyethylene Insulation, PVC Jacket, Chrome Jacket, -20 to 60 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size18 AWG
Conductor TypeStranded Tinned Copper
Insulation MaterialPolyethylene
Jacket ColorChrome
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors3
Outside Diameter0.246 in
Series8770
Strands16/30
Temperature Rating-20 to 60 deg C
TypeAudio Multi-Conductor Non-Plenum Shielded
Voltage Rating300 V AC
Applications
Indoor Applications
Features
- Overall Beldfoil with shorting fold outer shield (100% coverage)
- 74 lb maximum recommended pulling tension
- 2-1/2 in minimum bend radius/minor axis
- 24 pF/ft nominal conductor to conductor capacitance
- 48 pF/ft nominal conductor to other conductor and shield capacitance
- 6.6 Ohm/1000 ft at 20 deg C nominal conductor DC resistance
- 8.5 Ohm/1000 ft at 20 deg C nominal outer shield DC resistance
- 20 AWG stranded tinned copper drain wire
- 2.7 in cabling lay length, 4.4 twists/ft, left hand direction
Specifications
Standards/Approvals: CE Certified, UL Style 2093, UL 1685 Listed, CSA FT1 Certified, RoHS Compliant
