Belden 8760

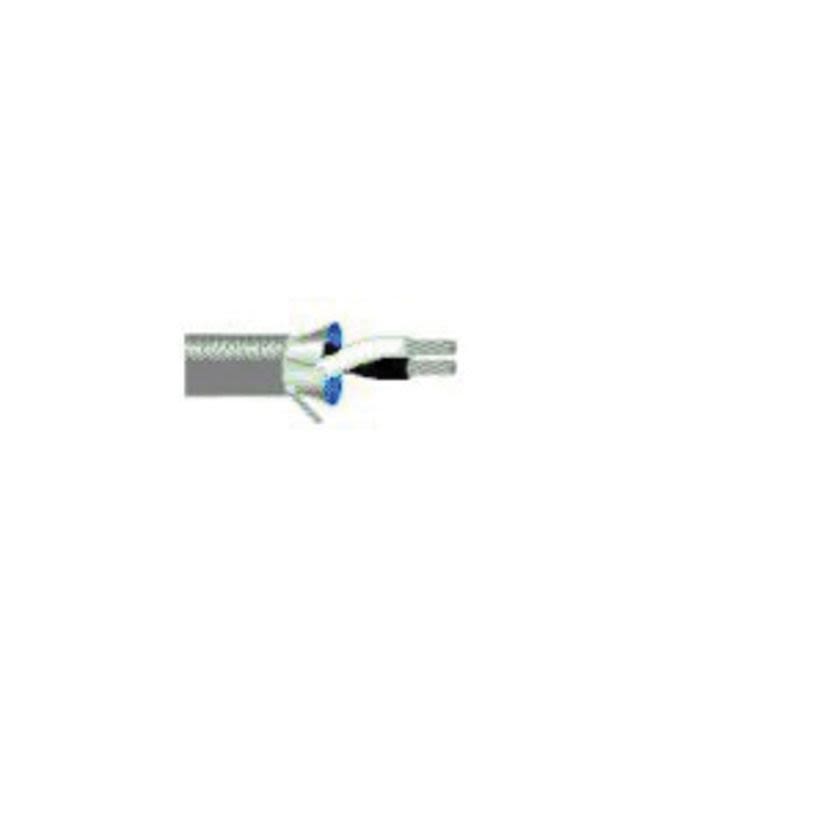

Belden 8760 Audio Multi-Conductor Non-Plenum Shielded Control/Instrumentation Cable, 300 V AC, (2) 18 AWG Stranded Tinned Copper Conductor
Belden 8760
Belden 8760 Audio Multi-Conductor Non-Plenum Shielded Control/Instrumentation Cable, 300 V AC, (2) 18 AWG Stranded Tinned Copper ConductorIn Stock: 2000more info
|
In Stock: 2000more info
|
Product Description
Belden Control/Instrumentation Cable, Audio Multi-Conductor Non-Plenum Shielded, Series: 8760, 300 V AC, 7.2 A, 2 Conductors, Stranded Tinned Copper Conductor, 18 AWG Conductor, 5.639 mm OD, 16/30 Strands, Polyethylene Insulation, PVC Jacket, Chrome Jacket, -20 to 60 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size18 AWG
Conductor TypeStranded Tinned Copper
Insulation MaterialPolyethylene
Jacket ColorChrome
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors2
Outside Diameter5.639 mm
Series8760
Strands16/30
Temperature Rating-20 to 60 deg C
TypeAudio Multi-Conductor Non-Plenum Shielded
Voltage Rating300 V AC
Applications
Indoor Applications
Features
- Overall Beldfoil outer shield (100% coverage)
- 240.203 N maximum recommended pulling tension
- 57.15 mm minimum bend radius/minor axis
- 89.243 pF/m nominal conductor to conductor capacitance
- 21.3265 Ohm/km at 20 deg C nominal conductor DC resistance
Specifications
Standards/Approvals: UL, ANATEL, COFETEL, IC Listed, CSA, NOM Certified, FCC Approved
