Advance 71A6552001

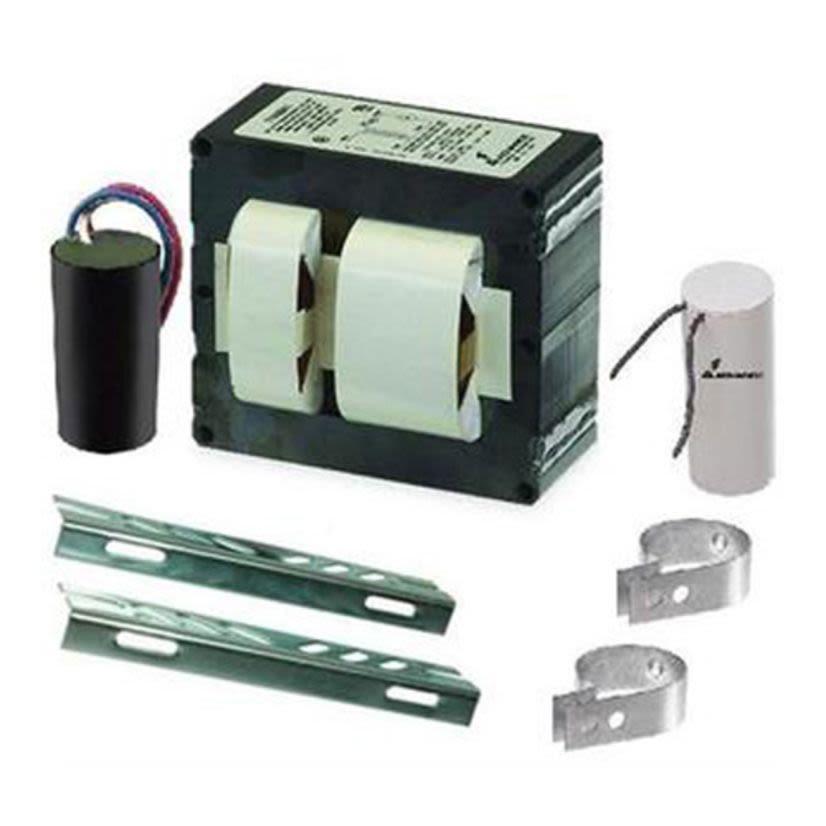

Advance 71A6552001 Magnetic HID Ballast, HID Lamp, 1000 W Lamp, 120/208/240/277/480 V AC, 1 Ballast Factor
Advance 71A6552001
Advance 71A6552001 Magnetic HID Ballast, HID Lamp, 1000 W Lamp, 120/208/240/277/480 V AC, 1 Ballast FactorOut of Stockmore info
|
BrandAdvance
MFG #71A6552001
Werner Part #156648
UPC781087111833
Out of Stockmore info
|
BrandAdvance
MFG #71A6552001
Werner Part #156648
UPC781087111833
Product Description
Advance, 71A6552001, HID Ballast, Magnetic, HID Lamp, 1000 W Lamp, 1080 W Wattage, 120/208/240/277/480 V AC, 9.2/5.8/4.8/4.1/2.4 A, 60 Hz Frequency, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamps, Thermal Protection: Class P, 71A6552 Lamp Base, Ballast Factor: 1, ANSI M47 Ballast Grade, 6 in L x 5.6 in W x 4.25 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Ballast Factor1
Ballast GradeANSI M47
Country of OriginCN
Dimensions6 in L x 5.6 in W x 4.25 in H
DimmableNo
Frequency Rating60 Hz
GTIN00781087111833
Lamp Base Type71A6552
Lamp TypeHID
Lamp Wattage1000 W
ManufacturerSignify
Number of Lamps1
Package TypeEACH
Power Factor0.9
Start TypeProbe
Thermal ProtectionClass P
TypeMagnetic
Type / StyleMagnetic
Voltage Rating120/208/240/277/480 V AC
Wattage1080 W
Applications
Lighting Luminaire Component and Outdoor Applications
Features
- 24 Mfd capacitor
- 4.96/3.84/2.77/2.35/1.37 A input current (open circuit), 5.77/2.91/2.78/2.39/1.38 A input current (starting), 4.36 to 6.64/2.14 to 3.2/2.1 to 3.14/1.82 to 2.74/1.04 to 1.56 A input current (short circuit), 9.2/5.8/4.8/4.1/2.4 A input current (nominal)
- 4-1/4 x 6 in (2 coil) core
- 1.75 in Dia x 3.9 in H oval capacitor
- UL insulation class H of 180 deg C
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- Ballast replacement kit with oil filled capacitor
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Recognized|CSA Certified|UL Insulation Class H
