ADC 9940

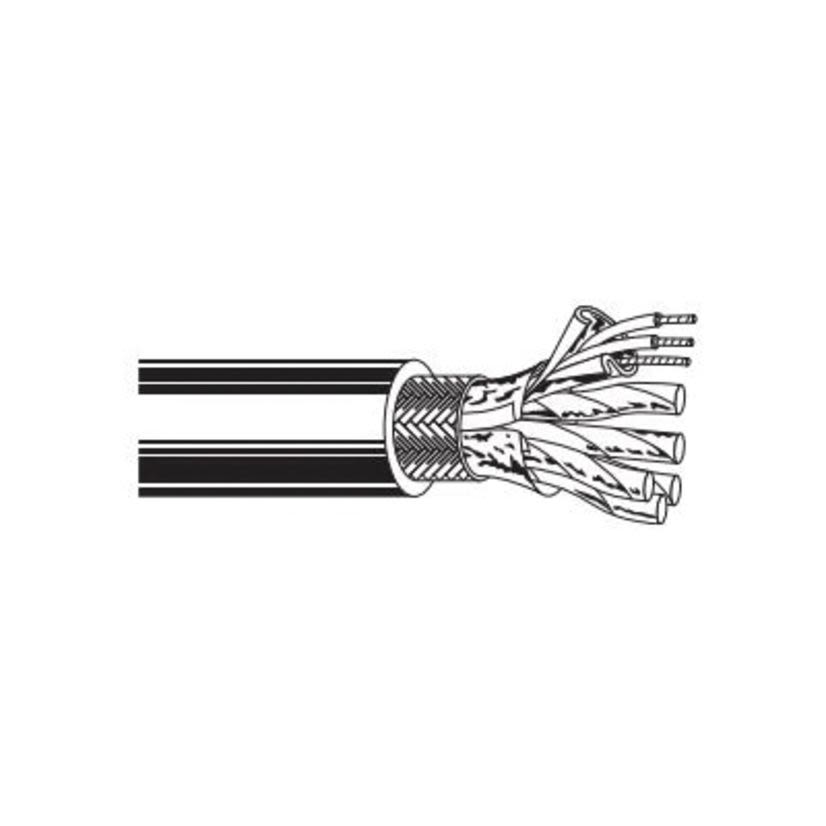

ADC 9940 Multi-Conductor Non-Plenum Shielded Computer Cable
ADC 9940
ADC 9940 Multi-Conductor Non-Plenum Shielded Computer CableNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Belden Computer Cable, Multi-Conductor Non-Plenum Shielded, 300 VAC, 2.4 A, 4 Conductors, Stranded Tinned Copper Conductor, 22 AWG Conductor, 0.215 in OD, 7/30 Strands, PVC Insulation, PVC Jacket, Chrome Jacket, -30 to 80 deg C
Attributes
Documents
Features
Specifications
Attributes
Country of OriginUnited States
Manufacturer9940
TypeDual Sided Vertical
Documents
Features
- 2-1/4 in minimum bend radius/minor axis
- 37 pF/ft nominal conductor to conductor capacitance
- 67 pF/ft nominal conductor to other conductor and shield capacitance
- 14.7 Ohm/1000 ft at 20 deg C nominal conductor DC resistance
- 5 Ohm/1000 ft at 20 deg C nominal outer shield DC resistance
- 22 AWG stranded tinned copper conductor
- Aluminum foil-polyester tape and tinned copper braid outer shield material
- Green overall cabling color code
- Overall Beldfoil shielded (100% coverage) and TC braid shielded (65% coverage)
Specifications
- CE Marked
- UL Style 2464
- UL 1685 Listed
- cUL FT4 Certified
- RoHS Compliant
