Acme T3533411S

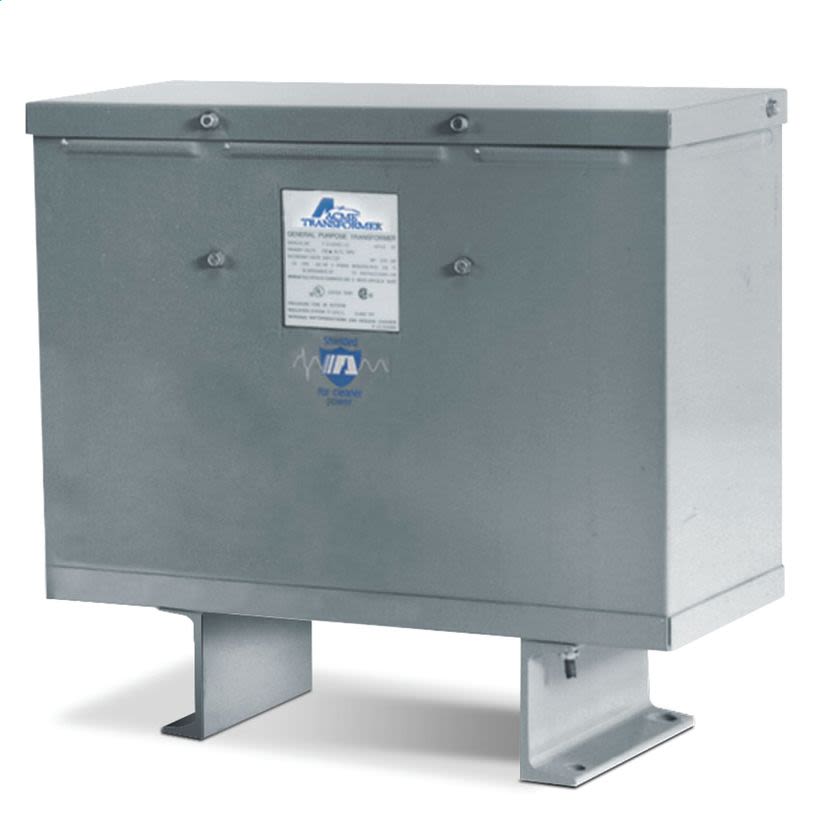

Acme Electric T3533411S Air Colled/Dry Distribution Transformer, 480D V AC Primary, 240D/120 VAC Secondary, 15 kVA Power Rating, 60 Hz, 3 Phase
Acme T3533411S
Acme Electric T3533411S Air Colled/Dry Distribution Transformer, 480D V AC Primary, 240D/120 VAC Secondary, 15 kVA Power Rating, 60 Hz, 3 PhaseNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Acme Electric Distribution Transformer, Air Colled/Dry, 480D V AC Primary, 240D/120 VAC Secondary, 15 kVA, 60 Hz, 3 ph, 25 A Maximum, 2 Taps, Wire Lead, Floor Mount, Class H/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 9.03 in L x 20.3 in W x 18.86 in H
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection TypeWire Lead
Country of OriginMX
Dimensions9.03 in L x 20.3 in W x 18.86 in H
Enclosure TypeNEMA 3R
Frequency Rating60 Hz
Housing MaterialSteel
Insulation TypeClass H/180 deg C
ManufacturerHubbell
Maximum Amperage Rating25 A
Mounting TypeFloor
Number of Taps2
Package TypeEACH
Phase3
Power Rating15 kVA
Primary Voltage480D V AC
Secondary Voltage240D/120 V AC
Temperature Rating115 deg C
TypeAir Colled/Dry
Type / StyleDry
Documents
Applications
For harsh industrial locations, corrosive chemical exposure, waste water treatment facilities, coastal or marine applications with high salt mist and where painted cold roll steel is not adequate
Warranty
10 years Limited
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
