IDEAL 46-344

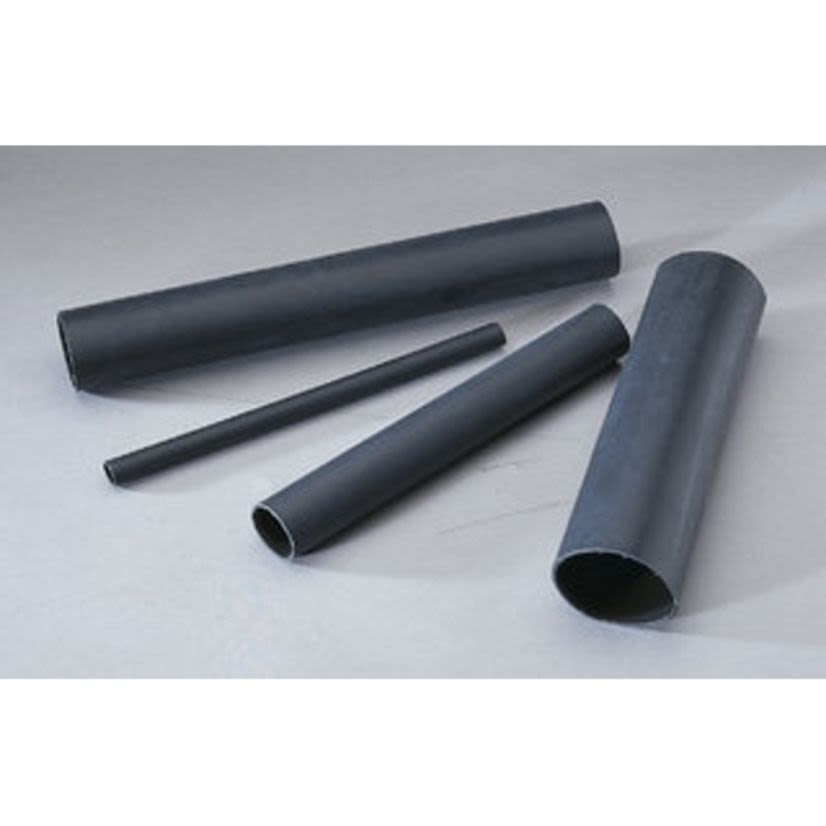

IDEAL Thermo-Shrink 46-344 Heat Shrink Tubing, 0.4 in ID Expanded, 0.15 in ID Recovered, 0.06 in THK Wall Recovered, 9 in L, Polyolefin, Black
IDEAL 46-344
IDEAL Thermo-Shrink 46-344 Heat Shrink Tubing, 0.4 in ID Expanded, 0.15 in ID Recovered, 0.06 in THK Wall Recovered, 9 in L, Polyolefin, BlackNon-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #46-344
Werner Part #1308731
UPC783250463442
Non-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #46-344
Werner Part #1308731
UPC783250463442
Product Description
IDEAL Thermo-Shrink Heat Shrink Tubing, 600 V AC, 0.4 in ID Expanded, 0.15 in ID Recovered, Heavy Duty Wall, 0.06 in Wall Thickness Recovered, 8 to 6 AWG Wire, 3:1 Shrink Ratio, 9 in Length, -55 to 110 deg C, 120 to 250 deg C Shrink, Polyolefin, Black
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Inner Diameter Expanded0.4 in
Inner Diameter Recovered0.15 in
Length9 in
ManufacturerIdeal Industries
MaterialPolyolefin
Overall Length5-1/2 in
Overall Width17-1/2 in
Package TypeEACH
SeriesTredTrak
Shrink Ratio3:1
Shrink Temperature120 to 250 deg C
Size of Wire8 to 6 AWG
Temperature Rating-55 to 110 deg C
TypeMale to Female Non-Mounted Standard
Type / StyleHeavy-Wall Heat Shrink Tubing
Voltage600 VAC
Voltage Rating600 V AC
Wall Thickness Recovered0.06 in
Wall TypeHeavy Duty
Applications
Underground and Underwater Applications
Features
- TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio
- Maximum flame retardancy
- Rated for 600V, 90C continuous use
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 486D|CSA C22.2 No. 198.2|ANSI C119.1|Western Underground Guide No. 2.4/2.5|MIL-DTL-23053/15|IEEE 383 Vertical Flame Test|ANSI C37.20.2|ICEA S-19-8|NEMA Insulation Thickness Requirements
