Advance LEDINTA0520C80DBM

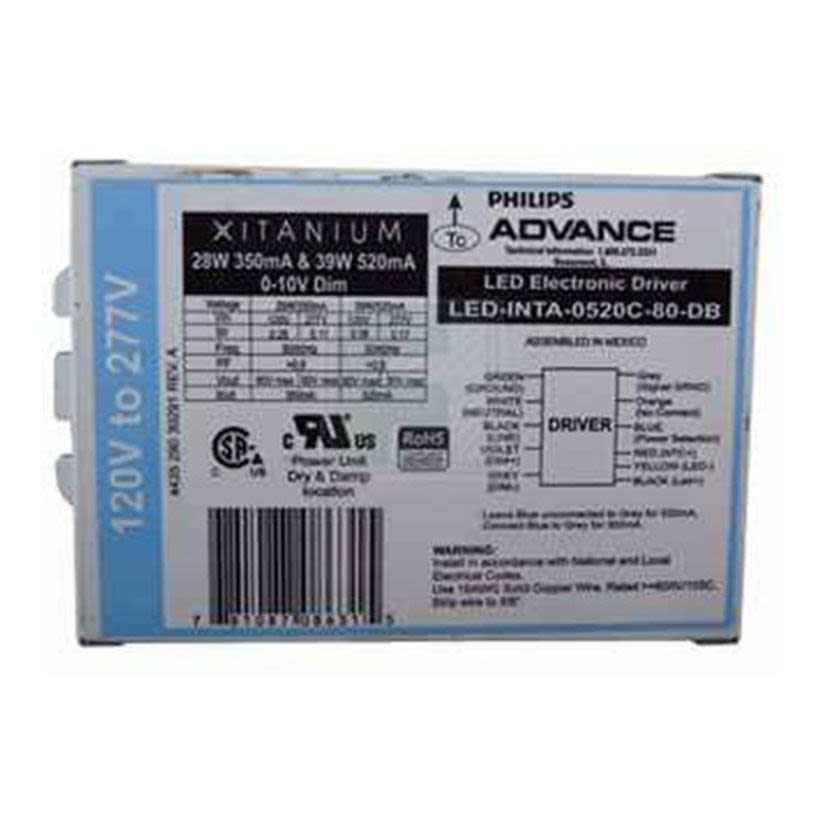

Advance LEDINTA0520C80DBM 17-Wire Dimmable LED Driver, 120 to 277 V AC Input, 40 to 77 VDC Output, 40 W Power Rating, 4.21 in L x 3.01 in W
Advance LEDINTA0520C80DBM
Advance LEDINTA0520C80DBM 17-Wire Dimmable LED Driver, 120 to 277 V AC Input, 40 to 77 VDC Output, 40 W Power Rating, 4.21 in L x 3.01 in WNon-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #LEDINTA0520C80DBM
Werner Part #4090670
UPC781087086322
Non-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #LEDINTA0520C80DBM
Werner Part #4090670
UPC781087086322
Product Description
Advance, LEDINTA0520C80DBM, LED Driver, 17-Wire Dimmable, 120 to 277 V AC Input, 40 to 77 VDC Output, 40 W Power, 0.35 to 0.52 A, Power Factor: 0.9, 4.21 in Length, 3.01 in Width, 1.18 in Height, -20 to 55 deg C
Attributes
Documents
Applications
Features
Attributes
Country of OriginUS
Height1.18 in
Input Voltage120 to 277 V AC
Length4.21 in
ManufacturerSignify
Output Voltage40 to 77 V DC
Power Factor0.9
Power Rating40 W
Temperature Rating-20 to 55 deg C
Type17-Wire Dimmable
Type / Style17-Wire Dimmable
Width3.01 in
Applications
Downlighting, Office, Retail, Hospitality, Meeting Rooms, Damp and Dry Locations Applications
Features
- Dimmable drivers include 0 to 10 VDC, step dim or leading edge dimming to integrate into common dimming systems used in commercial applications
- Adjustable output current, UL class 2
- Wide operating windows
- 1% 0 to 10 VDC dimming on select models
- High efficiency for maximum payback
- High reliability for low maintenance costs
- Midpack package
- M5 BS-Can housing
- Dimming enables maximum energy savings and can help to facilitate worker comfort
