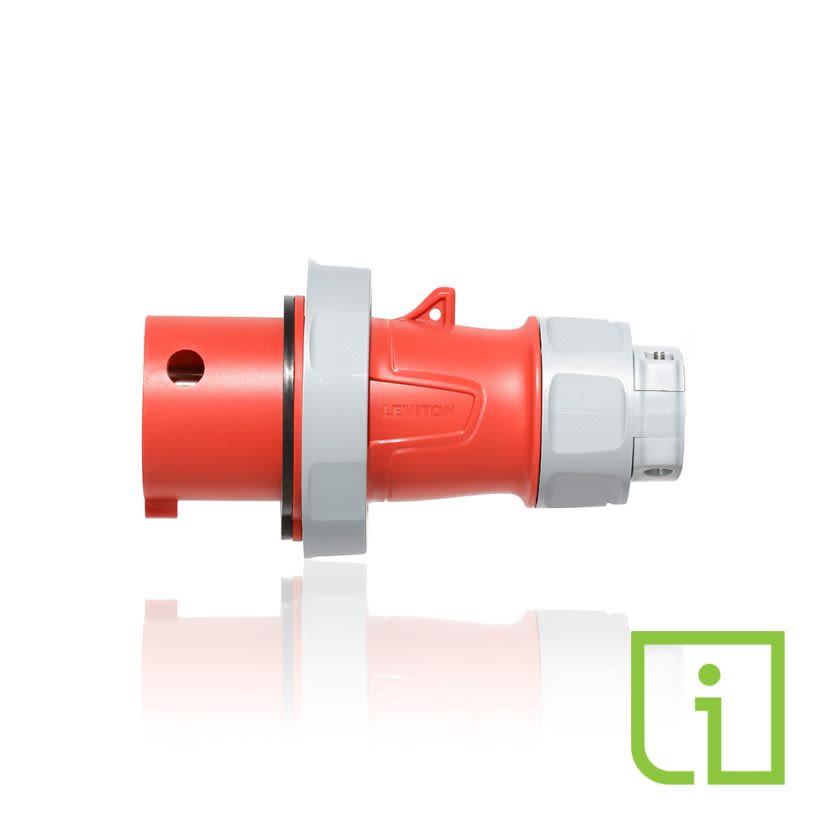

Leviton 430P7WLEVPI
Leviton 430P7WLEVPI LEV Series 3-Phase Dustight North American Rated Watertight Pin and Sleeve Plug With Power Indication, Standard Clamp, Inform Technology, 480 V AC, 30 A, 3 Poles, 4 Wires, Red
Leviton 430P7WLEVPI
Leviton 430P7WLEVPI LEV Series 3-Phase Dustight North American Rated Watertight Pin and Sleeve Plug With Power Indication, Standard Clamp, Inform Technology, 480 V AC, 30 A, 3 Poles, 4 Wires, RedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton Pin and Sleeve Plug, 3-Phase Dustight North American Rated Watertight, Series: LEV Series, 480 V AC, 30 A, 7-1/2 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, Hex Socket Screw Terminal, Nylon, Red, 6.57 in L x 3.62 in W Dimensions
Attributes
Documents
Applications
Included
Features
Specifications
Warranty
Attributes
ColorRed
Conductor size#10 AWG to #8 AWG
Country of OriginMX
Dimensions6.57 in L x 3.62 in W
Enclosure TypeIP66/IP67/IP68/IP69K
GradeIndustrial
GTIN78477286913
Horsepower7-1/2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 3R/4X/6P/12
Number of Poles3
Number of Wires4
Package TypeEACH
Phase3 phase
SeriesLEV Series
Terminal TypeHex Socket Screw
Type3-Phase Dustight North American Rated Watertight
Voltage Rating480 V AC
Documents
Applications
Food and Beverages Applications
Included
(2) Clamp Screws
Features
- Inform is Leviton technology platform that enables conventional Leviton products to provide real-time information that is used to improve operational safety, efficiency and productivity
- Green LED indication offers the ability to visually identify if there is power present
- LED illuminates when the device is energized
- Completely screwless back clamp cuts installation time and adds additional dust guard protection
- NSF certified sanitary design trusted for use in food and beverage facilities
Specifications
- NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
- CSA C22.2 No 182.1-13 (Harmonized with UL 1682)
- 60309-1, 60309-2
- NOM –ANCE standards
- RoHS compliant components
- UL 1686 C2, UL 1682
Warranty
5 years Limited
